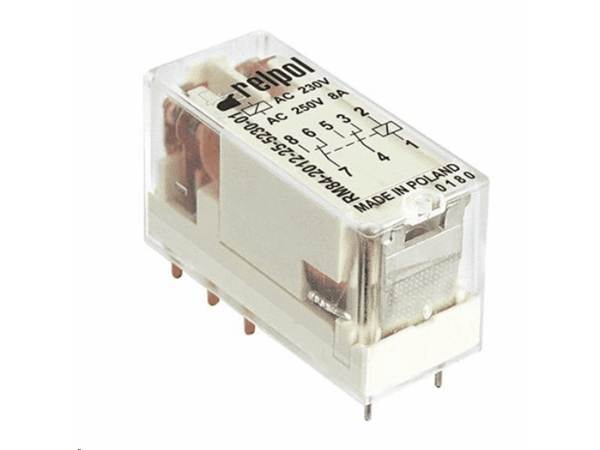

Miniature relæ - 24VAC 8A, 2 x skifte (DPDT), 8-ben 5mm
Varenr:
H60578
EAN:
5705412605786
Tekniske detaljer:
- Producent (varemærke): RELPOL
- Type relæ: Elektromagnetisk
- Kontaktkonfiguration: DPDT
- Nominel spolespænding: 24Vac
- AC kontaktstrøm (ved resistiv belastning): 8A 250Vac
- DC kontaktstrøm (ved resistiv belastning): 8A 24Vdc
- Maks. kontaktstrøm: 8A
- Maks. Koblet spænding: 250Vdc, maks. 440Vac
- Relævariant: Miniature
- Montering: PCB
- Spolemodstand: 400 Ohm
- Spolespænding min.: 19,2Vac
- Spolespænding maks.: 28,8Vac

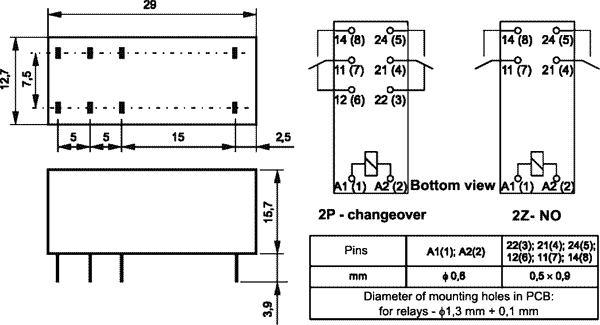

- Husstørrelse: 29x12,7x15,7mm
- Spolens strømforbrug: 750mVA
- IP-klassificering: IP67
- Mekanisk holdbarhed: 30000000 cyklusser
- Operationel temperatur: -40...85°C
- Vægt: 14g
- Relæserie: RM84
- Kontaktmodstand: 100 mOhm
- Kontaktmateriale: AgNi
- Terminalafstand: 5mm
- Højde: 15,7mm
- Relaterede varer: GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80
- OEM nummer: 604615
- Antal ben: 8
- Husfarve: Hvid
Specifications:
- Manufacturer: RELPOL
- Type of relay: Electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 24V AC
- AC contacts rating @R: 8A 250V AC
- DC contacts rating @R: 8A 24Vdc
- Contact current max.: 8A
- Switched voltage: Max. 250Vdc, max. 440V AC
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 400 Ohm
- Coil voltage min.: 19.2V AC
- Coil voltage max.: 28.8V AC
- Body dimensions: 29x12.7x15.7mm
- Coil power consumption: 750mVA
- IP rating: IP67
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...85°C
- Weight: 14g
- Relay series: RM84
- Contact resistance: 100 mOhm
- Contact material: AgNi
- Terminal pitch: 5mm
- Height: 15.7mm
- Related items: GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80
- OEM number: 604615
- Number of pins: 8
- Body colour: White
