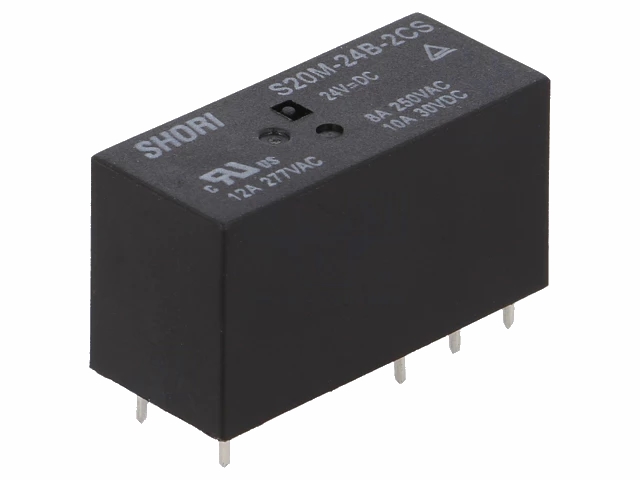

Miniature relæ - 24VDC 10A, 2 x skifte (DPDT), 8-ben 5mm
Varenr:
H60662
EAN:
5705412606622
Tekniske detaljer:
- Producent (varemærke): SHORI ELECTRIC
- Type relæ: Miniature elektromagnetisk relæ
- Kontaktkonfiguration: DPDT
- Nominel spolespænding: 24Vdc
- Maks. kontaktstrøm: 10A
- Montering: PCB
- Spolemodstand: 1440 Ohm
- Husstørrelse: 12,7x15,7x29mm
- Spolens strømforbrug: 400mW
- Mekanisk holdbarhed: 30.000.000 cyklusser
- Operationel temperatur: -40...85°C
- Vægt: 10g
- Relæserie: S20
- Kontaktmodstand: 100 mOhm
- Elektrisk levetid: 100.000 cyklusser
- Spolestrøm: 17mA
Specifications:
- Manufacturer: SHORI ELECTRIC
- Type of relay: Electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 24Vdc
- Contact current max.: 10A
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 1440 Ohm
- Body dimensions: 12.7x15.7x29mm
- Coil power consumption: 400mW
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...85°C
- Weight: 10g
- Relay series: S20
- Contact resistance: 100 mOhm
- Electrical life: 100000 cycles
- Coil current: 17mA
