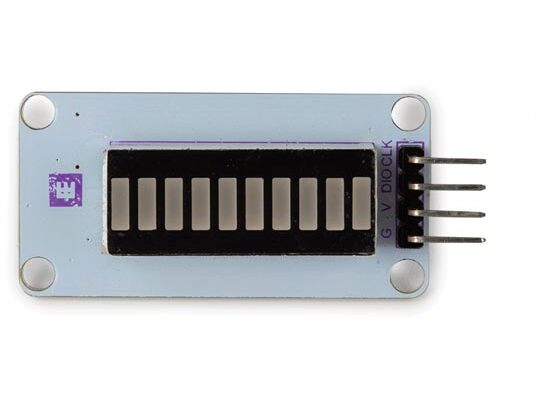

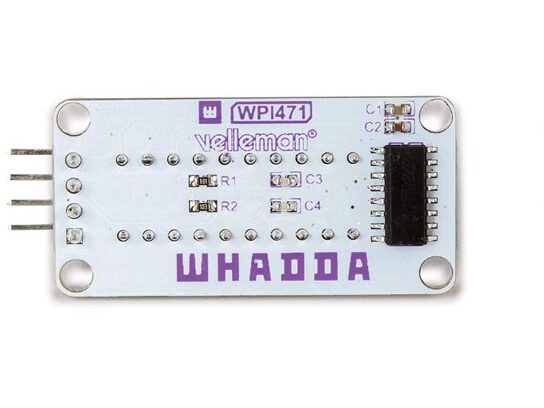

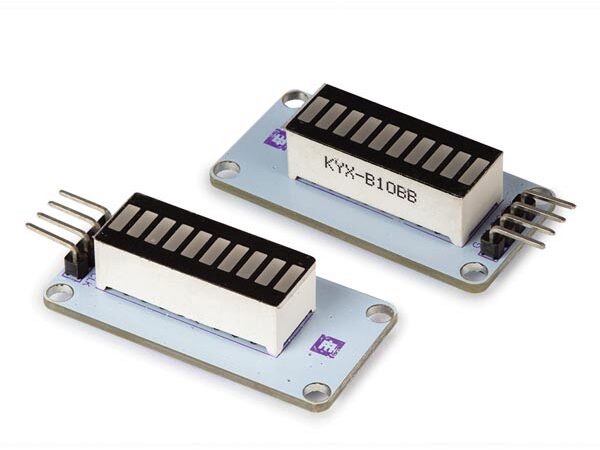

Bar graf displaymodul til Arduino (2 stk.)
Varenr:
H60714
EAN:
5410329731830
Dette modul er ideelt egnet til at vise niveauer af batteriladning, vandtanke osv...!
Whadda søjlediagrammodulet gør det muligt for ethvert mikrocontrollerkort nemt at køre et 10-segments blåt LED-søjlediagram. Modulet bruger en TM1651 LED-driverchip til at drive de individuelle LED-segmenter, som kan styres ved kun at bruge 2 GPIO-ben på en mikrocontroller (såsom et Arduino®-kompatibelt kort). Det skal bemærkes, at nogle af LED-segmenterne er koblet sammen, hvilket resulterer i 8 forskellige kontrollerbare tilstande af LED-søjlediagrammet.
Egenskaber:
- Kør et 10-segment blåt LED-søjlediagram
- Styres af 2 GPIO-ben
Tekniske detaljer:
- Forsyningsspænding: 3,3 - 5Vdc
- Farve: Blå
- Driver chip: TM1651
- Antal LED-segmenter: 10
- Antal niveauindikatorer: 8
- Interface: 2-leder seriel
This module is ideally suited to display levels of battery charge, water tanks, etc !
The Whadda bar graph module allows any microcontroller board to easily drive a 10-segment blue LED bar graph. The module uses a TM1651 LED driver chip to drive the individual LED segments, which can be controlled by using only 2 GPIO pins of a microcontroller (such as an Arduino® compatible board). It should be noted that some of the LED-segments are wired together, resulting in 8 different controllable states of the LED bar graph.
Features:
- Drive a 10-segment blue LED bar graph
- Controllable by 2 GPIO pins
Specifications:
- Supply voltage: 3,3 - 5Vdc
- Color: Blue
- Driver chip : TM1651
- Number of LED segments: 10
- Number of level indicators: 8
- Interface: 2 wire serial
