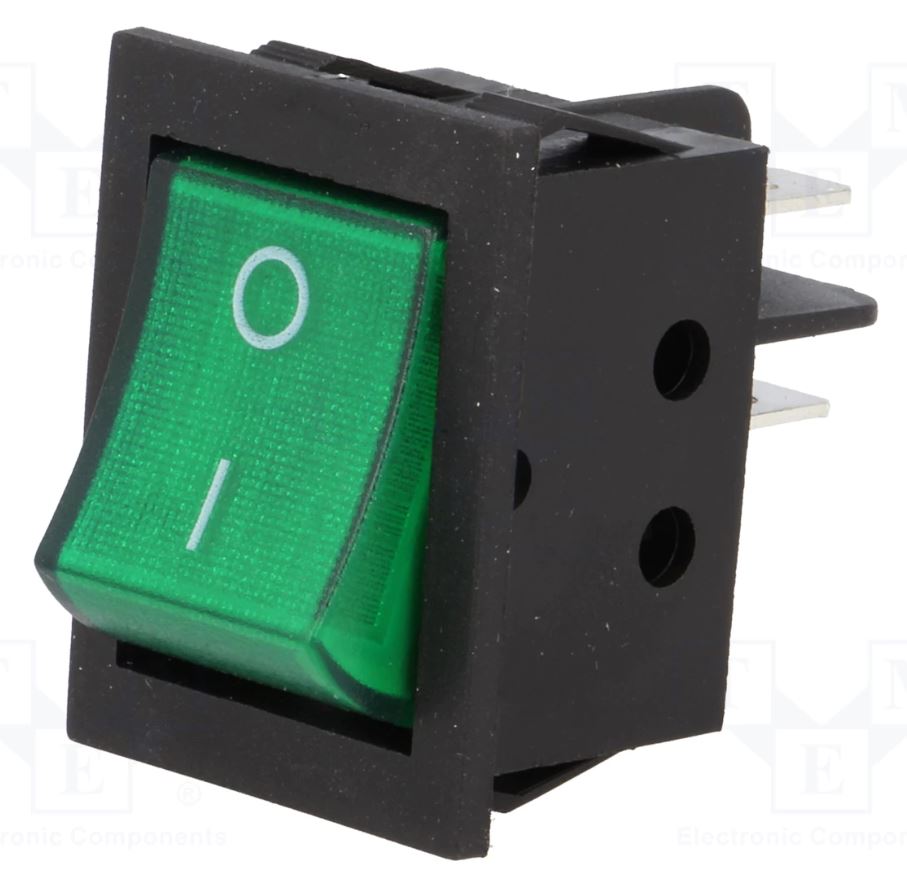

Vippekontakt - 2P OFF-ON, 15A 250V, Grøn lys 0-I (31x22,3mm)
Varenr:
H61060
EAN:
5705412610605
Tekniske detaljer:
- Afbrydertype: ROCKER
- Kontaktkonfiguration: DPST
- Antal stillinger: 2
- Skiftemetode: OFF-ON
- AC kontaktstrøm (ved resistiv belastning): 15A 250Vac
- Farve på tasten: Grøn
- Belysning: Neonlampe
- Maks. kontaktmodstand: 35 mOhm
- Husfarve: Sort
- Operationel temperatur: -30...80°C
- Elektrisk montage: 6,3x0,8mm spadestik
- Elektrisk levetid: 10000 cyklusser
- Monteringshul: 31x22,3mm
- Knapmærkning: O-I
- Baggrundsbelysningsfarve: Grøn
- Knapform: Rektangulær
- Højde over panel: 9,4mm
- Antal stabile positioner: 2
Specifications:
- Type of switch: ROCKER
- Contacts configuration: DPST
- Number of positions: 2
- Switching method: OFF-ON
- AC contacts rating @R: 15A 250V AC
- Key button colour: Green
- Illumination: Neon lamp
- Max. contact resistance: 35 mOhm
- Body colour: Black
- Operating temperature: -30...80°C
- Leads: 6,3x0,8mm connectors
- Electrical life: 10000 cycles
- Mounting hole diameter: 31x22.3mm
- Button marking: O-I
- Backlight colour: Green
- Related items: RSC09
- Button shape: Rectangular
- Height above panel: 9.4mm
- Stable positions number: 2
