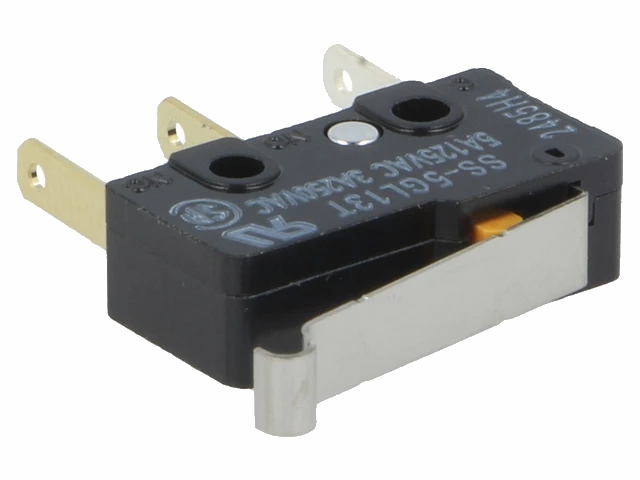

Mikroswitch m. kort arm - 5A/250V, ON-(ON) SPDT, 2,8mm spade
Varenr:
H61980
EAN:
5705412619806
Tekniske detaljer:
- Producent (varemærke): OMRON OCB
- Type kontakt: Mikroswitch SNAP ACTION
- Aktuator: Kort arm m. rulleboltsimulering
- Kontaktkonfiguration: SPDT
- Maks. ACkontaktstrøm (ved resistiv belastning): 5A / 125VAC
- Maks. kontaktmodstand: 30 mOhm
- Skiftemetode: ON-(ON)
- Antal positioner: 2
- Antal stabile positioner: 1
- IP-rating: IP40
- Terminaltype: 2,8x0,5mm spade
- Terminalafstand: 7,3mm
- Husstørrelse: 19,8x6,4x10,2mm
- Mekanisk holdbarhed: 30000000 cyklusser
- Operationel temperatur: -25...85°C
- Driftskraft: 1,47N
- Armlængde: 15,8mm
- Elektrisk levetid: 200000 cyklusser
- Min. isolationsmodstand: 100 MOhm
- Producentserie: SS
Specifications:
- Manufacturer: OMRON OCB
- Type of switch: Microswitch SNAP ACTION
- Actuator: Simulated roller lever
- Contacts configuration: SPDT
- AC contacts rating @R (at resistive load): 5A / 125VAC
- Max. contact resistance: 30 mOhm
- Switching method: ON-(ON)
- Number of positions: 2
- Stable positions number: 1
- IP rating: IP40
- Leads: 2,8x0,5mm connectors
- Terminal pitch: 7.3mm
- Body dimensions: 19.8x6.4x10.2mm
- Mechanical durability: 30000000 cycles
- Operating temperature: -25...85°C
- Operating Force: 1.47N
- Lever length: 15.8mm
- Electrical life: 200000 cycles
- Min. insulation resistance: 100 MOhm
- Manufacturer series: SS
