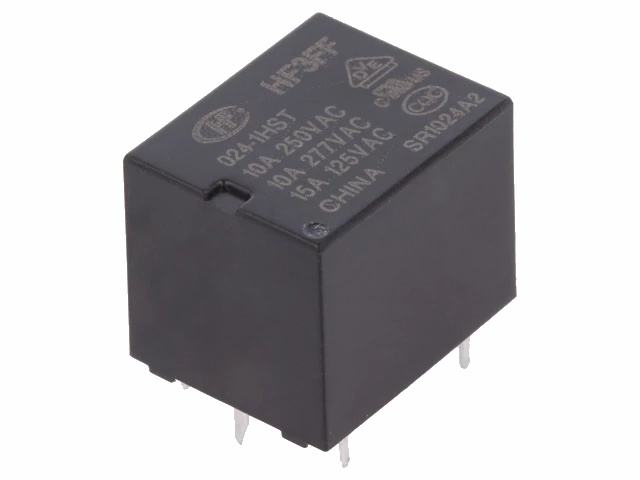

Miniature relæ - 24VDC 10A, 1 x slutte (SPST-NO), 5-ben 2mm
Varenr:
H62052
EAN:
5705412620529
Tekniske detaljer:
- Producent (varemærke): HONGFA RELAY
- Type relæ: Elektromagnetisk
- Kontaktkonfiguration: SPST-NO
- Nominel spolespænding: 24Vdc
- Maks. kontaktstrøm: 15A
- Maks. AC-kontaktstrøm (ved resistiv belastning): 10A / 277VAC
- Maks. DC-kontaktstrøm (ved resistiv belastning): 10A / 28Vdc
- Maks. koblet spænding: 28Vdc, 277Vac
- Relævariant: Miniature
- Montering: Printhul
- Spolemodstand: 1,6 kOhm
- Spolespænding min.: 18Vdc
- Spolespænding maks.: 31,2Vdc
- Driftstid: 10ms
- Husstørrelse: 19x15,5x15,2mm
- Udgivelsestid: 5ms
- Spolens strømforbrug: 360mW
- Operationel temperatur: -40...70°C
- Kontaktmodstand: 100 mOhm
- Kontaktmateriale: AgSnO2
- Terminalafstand: 2mm
Også kendt som: HJR-3FF-SH.
Specifications:
- Manufacturer: HONGFA RELAY
- Type of relay: Electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 24V DC
- Contact current max.: 15A
- AC contacts rating @R (at resistive load): 10A / 277VAC
- DC contacts rating @R(at resistive load): 10A / 28VDC
- Switched voltage: Max. 28V DC, max. 277V AC
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 1.6 kOhm
- Coil voltage min.: 18V DC
- Coil voltage max.: 31.2V DC
- Operate time: 10ms
- Body dimensions: 19x15.5x15.2mm
- Release time: 5ms
- Coil power consumption: 360mW
- Operating temperature: -40...70°C
- Contact resistance: 100 mOhm
- Contact material: AgSnO2
- Terminal pitch: 2mm
