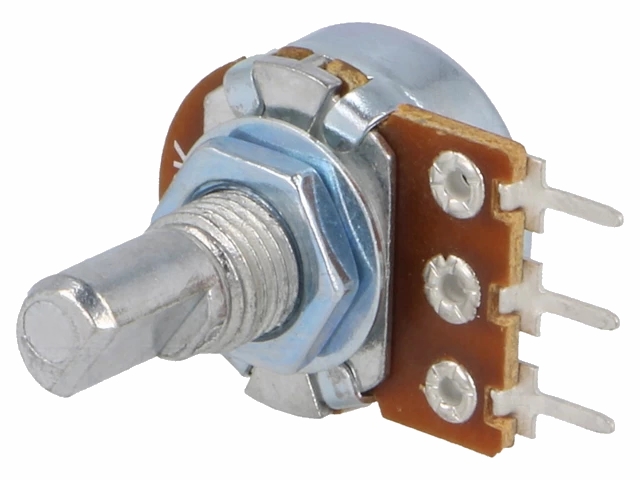

Potmeter - 10kOhm mono lin., Ø6mm D-aksel, printben
Varenr:
H62074
EAN:
5705412620741
Tekniske detaljer:
- Producent (varemærke): SR PASSIVES
- Type potentiometer: D-aksel, Enkelt omgang
- Modstand: 10 kOhm
- Effekt: 125mW
- Tolerance: ±20 %
- Montering: Printhul
- Akseldiameter: Ø6mm
- D-aksellængde: 9mm
- Karakteristika: Lineær
- Husstørrelse: Ø17x9,2mm
- Gevindlængde: 6mm
- Husmateriale: Metal
- Potentiometerfunktioner: Mono
- Spormateriale: Carbon
- Akseloverflade: D
- Mekanisk rotationsvinkel: 300°
- Benafstand: 5mm
- L-aksellængde: 15mm
- Polantal: 1
- Paneludskærings diameter: Ø7,2mm
- Maks. driftsspænding: 200V
Specifications:
- Manufacturer: SR PASSIVES
- Type of potentiometer: Shaft
- Kind of potentiometer: Single turn
- Resistance: 10 kOhm
- Power: 125mW
- Tolerance: ±20%
- Mounting: THT
- Shaft diameter: 6mm
- Shaft length: 9mm
- Characteristics: Linear
- Body dimensions: Ø17x9.2mm
- Thread length: 6mm
- Body material: Metal
- Potentiometer features: Mono
- Leads: For PCB
- Track material: Carbon
- Shaft surface: D spring
- Mechanical rotation angle: 300°
- Terminal pitch: 5mm
- L shaft length: 15mm
- Poles number: 1
- Panel cutout diameter: 7.2mm
- Max. operating voltage: 200V
