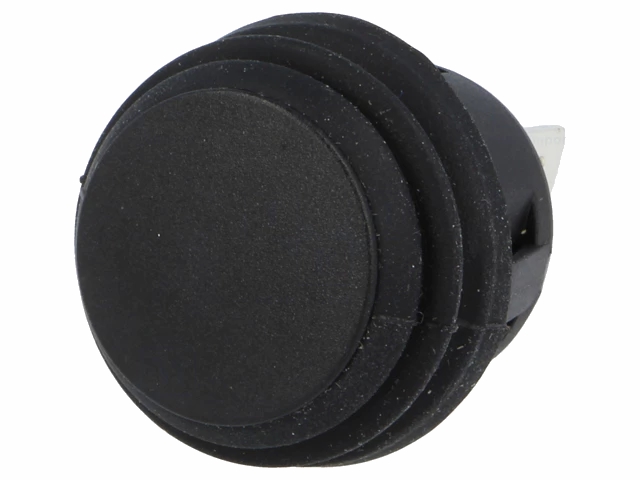

Rund Trykkontakt - 2P OFF-(ON) 6A/250V, Sort, IP65 (Ø20,2mm)
Varenr:
H62184
EAN:
5705412621847
Tekniske detaljer:
- Producent (varemærke): SCI
- Type kontakt: Trykknap
- Skiftemetode: OFF-(ON)
- Antal stillinger: 2
- Antal stabile positioner: 1
- Kontaktkonfiguration: DPST-NO
- Belysning: Ingen
- Tilledning: 4,8x0,8mm spadestik
- Operationel temperatur: -25...70°C
- Maks. kontaktmodstand: 50 mOhm
- Knapform: Rund
- Monteringshul diameter: Ø20,2mm
- Husmateriale: Polyamid
- AC testspænding: 1,5kV
- Aktuator farve: Sort
- Maks. paneltykkelse: 3mm
- Montering: På panel
- IP-rating: IP65
- Husstørrelse: Ø17,5x18mm
- Antændelighedsklasse: UL94V-2
- Terminalbelægning: Sølvbelagt
- Producentserie: R13-527
Specifications:
- Manufacturer: SCI
- Type of switch: Push-button
- Switching method: OFF-(ON)
- Number of positions: 2
- Stable positions number: 1
- Contacts configuration: DPST-NO
- Illumination: None
- Leads: 4,8x0,8mm connectors
- Operating temperature: -25...70°C
- Max. contact resistance: 50 mOhm
- Button shape: Round
- Mounting hole diameter: Ø20.2mm
- Body material: Polyamide
- AC test voltage: 1.5kV
- Actuator colour: Black
- Panel thickness: Max. 3mm
- Mounting: On panel
- Body dimensions: Ø17.5x18mm
- IP rating: IP65
- Flammability rating: UL94V-2
- Terminals plating: Silver plated
- Manufacturer series: R13-527
