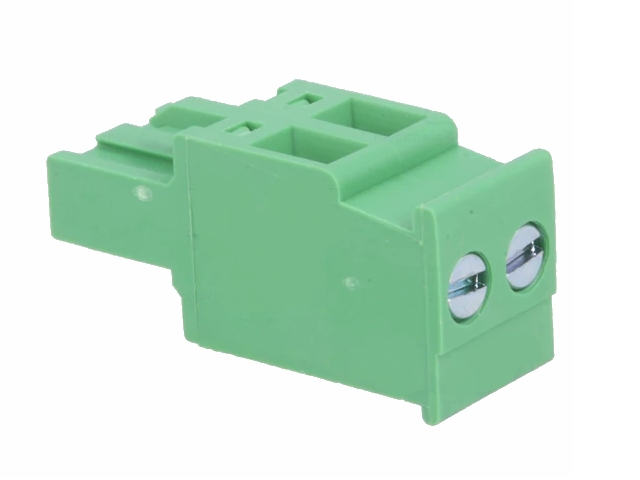

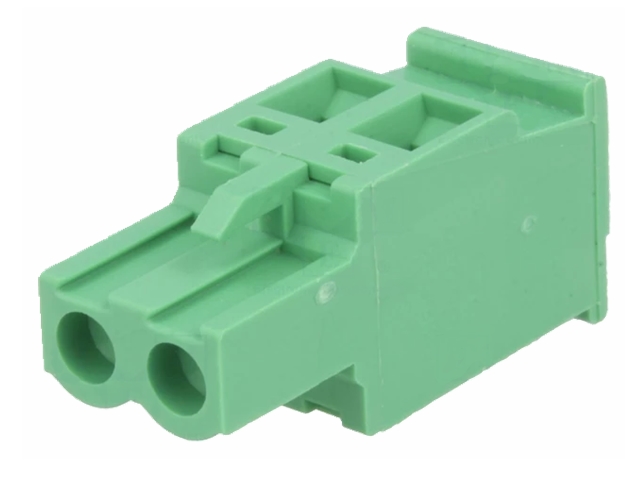

Indstik Skrueterminal - 2P hun 90°, 5mm 300V/12A
Varenr:
H62197
EAN:
5705412621977
Tekniske detaljer:
- Producent (varemærke): DEGSON ELECTRONICS
- Type stik: Tilslutningsbar klemrække
- Kontaktafstand: 5mm
- Antal poler: 2
- Køn: Hun
- Orientering: Vinklet
- Mekanisk montage: Til kabel
- Elektrisk montage: Burklemme, skrueterminal
- Trådtværsnit: 1...2,5mm2
- Trådstørrelse: 28AWG...12AWG
- Farve: Grøn
- Nominel spænding: 320V
- Låsesystem: Latch
- Type stiftkonfiguration: 1x2
- Strømstyrke: 10A
- Husmateriale: Polyamid 66
- Antændelighedsklasse: UL94V-0
- Overensstemmende med normen: CEULVDE
- Operationel temperatur: -40...105°C
- Kontaktmateriale: Fosforbronze
- Antal terminaler: 2
- Bruttovægt: 3,91g
Specifications:
- Manufacturer: DEGSON ELECTRONICS
- Type of connector: Pluggable terminal block
- Contacts pitch: 5mm
- Number of ways: 2
- Spatial orientation: Angled
- Connector: Plug
- Kind of connector: Female
- Mechanical mounting: For cable
- Electrical mounting: Cage clamp, screw terminal
- Wire cross-section: 1...2.5mm2
- Wire size: 28AWG...12AWG
- Colour: Green
- Rated voltage: 320V
- Locking system: Latch
- Type of pin configuration: 1x2
- Current rating: 10A
- Body material: Polyamide 66
- Flammability rating: UL94V-0
- Conform to the norm: CEULVDE
- Operating temperature: -40...105°C
- Contact material: Phosphor bronze
- Number of terminals: 2
- Gross weight: 3.91 g
