Industriel vægventilator - aRk Ø160mm 32W 185m3/t Hvid
Varenr:
H62377
EAN:
5903351805940

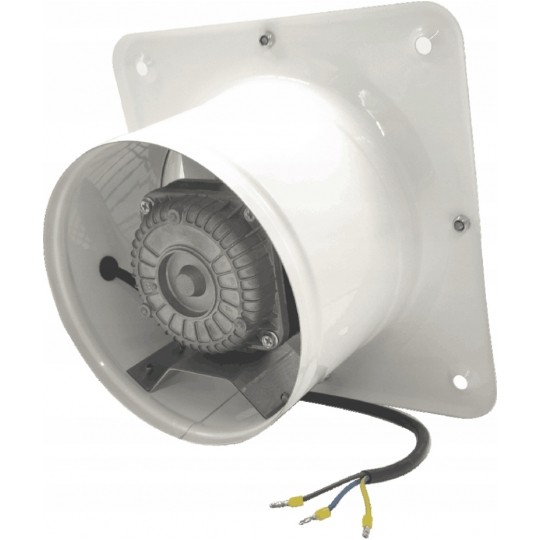

aRk ventilatorerne er industriventilatorer, der er malet hvide og designet til vægmonteret installation.
aRk er velegnede til brug på offentlige steder som butikker, barer, restauranter, vaskefaciliteter samt i huse, lejligheder og industribygninger (garager, lagerbygninger, lagerhaller osv.). aRk blæsere kan tilkobles en blæser hastighedsstyring (se tilbehør) for nemt at justere blæserhastigheden til forskellige arbejdsmiljøer.
Tekniske detaljer:
- Ventilatortype: Vægventilator
- Luftflow: 185 m3/t
- Akustisk tryk: 52 dB (A)
- Statisk tryk: 32 Pa
- Forsyningsspænding: 50...230 Vac, 50Hz
- Motoreffekt: 32W
- Blæserhastighed: 1400 rpm
- Strømforbrug: 0,2A
- Maks. driftstemperatur: 40°C

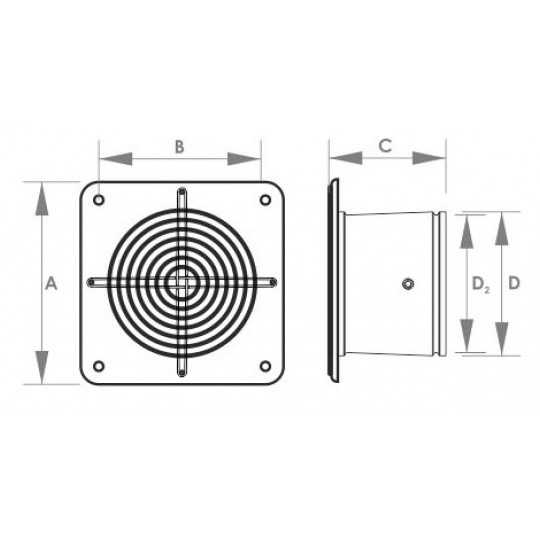

- Størrelse:
- A: 225mm
- B: 182mm
- C: 120mm
- D: 160mm
- D1: 155mm
- Vægt: 1,70kg
- Beskyttelsesgrad: IPX2
- Isoleringsklasse: 1
The aRk fans are industrial fans painted white and designed for wall-mounted installation.
aRk is designed for use in public places like shops, bars, restaurants, washing facilities as well as in houses, flats and industrial buildings (garages, warehouses, storage halls etc.). aRk fans can be paired with a fan controller to easily adjust the fan speed for different work environments.
Specifications:
- Fan type: Wall fan
- Air flow: 185 m3/h
- Acoustic pressure: 52 dB(A)
- Static pressure: 32 Pa
- Sypply voltage: 50...230 Vac, 50Hz
- Motor power: 32W
- Fan speed: 1400 rpm
- Power consumpion: 0,2A
- Max. operating temperature: 40°C
- Dimensions:
- A: 225mm
- B: 182mm
- C: 120mm
- D: 160mm
- D1: 155mm
- Net weight: 1,70 kg
- Degree of protection: IPX2
- Insulation class: 1
