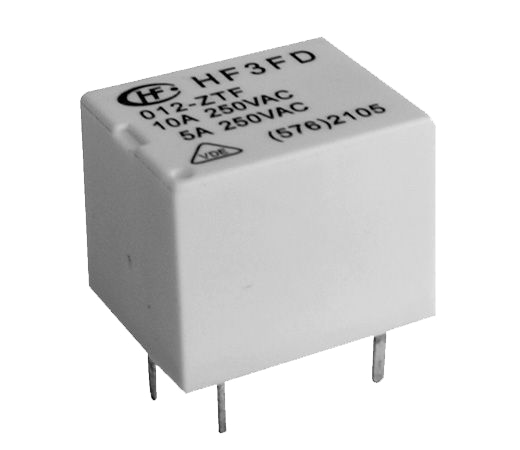

Miniature relæ - 12VDC / 15A, 1 x slutte (SPST-NO), 2mm
Varenr:
H62488
EAN:
5705412624886
Tekniske detaljer:
- Producent (varemærke): HONGFA RELAY
- Type relæ: Elektromagnetisk
- Kontaktkonfiguration: SPST-NO
- Nominel spolespænding: 12Vdc
- Maks. kontaktstrøm: 15A
- AC kontaktstrøm (ved resistiv belastning): 10A / 250Vac
- DC kontaktstrøm (ved resistiv belastning): 10A / 28Vdc
- Maks. Koblet spænding: 30Vdc, maks. 277Vac
- Relævariant: Subminiature
- Montering: Printhuls
- Spolemodstand: 400 Ohm
- Spolespænding min.: 9Vdc
- Spolespænding maks.: 15,6Vdc
- Driftstid: 10ms
- Husstørrelse: 19 x 15,5 x 15,2mm
- Udgivelsestid: 5ms
- Spolens strømforbrug: 360mW
- Operationel temperatur: -40...105°C
- Kontaktmodstand: 100 mOhm
- Kontaktmateriale: AgSnO 2
Specifications:
- Manufacturer: HONGFA RELAY
- Type of relay: Electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 12V DC
- Contact current max.: 15A
- AC contacts rating @R: 10A / 250V AC
- DC contacts rating @R: 10A / 28V DC
- Switched voltage: Max. 30V DC, max. 277V AC
- Relay variant: Subminiature
- Mounting: PCB
- Coil resistance: 400 Ohm
- Coil voltage min.: 9V DC
- Coil voltage max.: 15.6V DC
- Operate time: 10ms
- Body dimensions: 19x15.5x15.2mm
- Release time: 5ms
- Coil power consumption: 360mW
- Operating temperature: -40...105°C
- Contact resistance: 100 mOhm
- Contact material: AgSnO2
