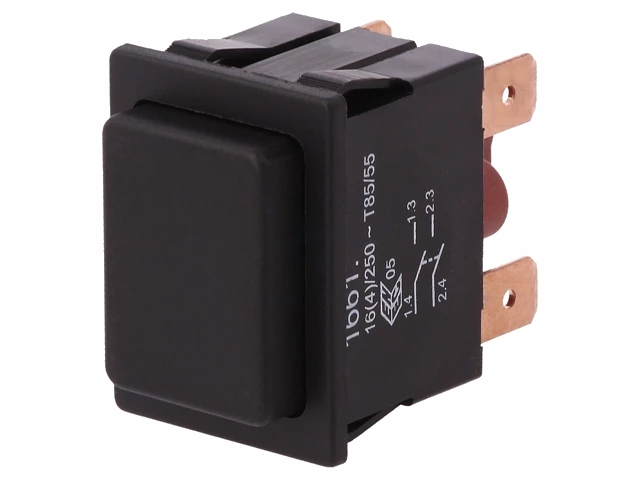

Trykkontakt - 2P OFF-(ON), 16A/250V, 6,3mm spadeterm. Sort
Varenr:
H62582
EAN:
5705412625821
Tekniske detaljer:
- Producent (varemærke): Marquardt
- Type kontakt: Trykknap
- Antal stillinger: 2
- Kontaktkonfiguration: DPST-NO
- AC kontaktstrøm (ved resistiv belastning): 16A / 250Vac
- Skiftemetode: OFF-(ON)
- IP-rating: IP40
- Belysning: Ingen
- Elektrisk montage: 6,3x0,8mm spadestik
- Operationel temperatur: -20...85°C
- Maks. kontaktmodstand: 100 mOhm
- Monteringshuls diameter: Ø30,4x22,2mm
- Husfarve: Sort
- Kontaktbelægning: Sølvbelagt
- Aktuator farve: Sort
- Maks. Paneltykkelse: 3mm
- Husstørrelse: 33x25x22,5mm
- Knapform: Rektangulær
- Producentserie: 1661
- Antal stabile positioner: 1
- Bruttovægt: 16,37g
Specifications:
- Manufacturer: Marquardt
- Type of switch: Push-button
- Number of positions: 2
- Contacts configuration: DPST-NO
- AC contacts rating @R: 16A / 250V AC
- Switching method: OFF-(ON)
- IP rating: IP40
- Illumination: None
- Leads: 6,3x0,8mm connectors
- Operating temperature: -20...85°C
- Max. contact resistance: 100 mOhm
- Mounting hole diameter: 30.4x22.2mm
- Body colour: Black
- Contact plating: Silver plated
- Actuator colour: Black
- Panel thickness: Max. 3mm
- Body dimensions: 33x25x22.5mm
- Button shape: Rectangular
- Manufacturer series: 1661
- Stable positions number: 1
- Gross weight: 16.37 g
