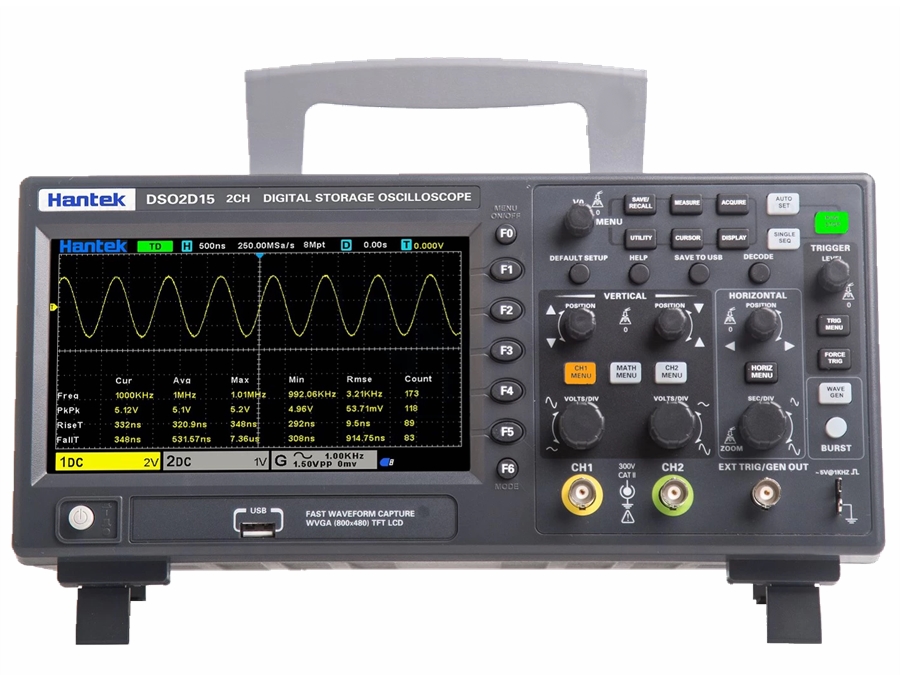

Digital oscilloskop - 150MHz 2 kan., 1Gsps Signalgenerator
Varenr:
H62752
EAN:
5705412627528
Egenskaber:
- Generatorfunktioner:
- 1-kanal
- CMOS-teknologi - reduceret strømforbrug
- Måleinstrumentets funktioner:
- Måler automatisk frekvens, periode, top til top, RMS, MIN, MAX, MEAN værdier
- FFT-analyse: Hanning, Flattop, Rectangular, Bartletta, Blackman, Hamming
- Matematiske funktioner: addition, subtraktion, division, multiplikation og FFT
- Målinger ved hjælp af markører
- Protokoller analysere: I2C, SPI, RS232/UART, CAN, LIN
- Understøtter SCPI
- Medfølgende dele:
- BNC-BNC kabel
- Strømkabel
- Producentens kalibreringscertifikat
- Oscilloskop-probe med 10:1 divider
- Testledninger
- USB-kabel
Tekniske detaljer:
- Producent (varemærke): HANTEK
- Type oscilloskop: Digital , DSO
- Antal kanaler: 2
- Bånd: 150MHz
- Sampling: 1Gsps
- Memory record længde: 4Mpts/ch
- Anvendt skærmtype: Farve, LCD TFT 7"
- Triggertilstande: Automatisk, normal, enkelt
- Trigger: CAN/LIN, faldende kant, IIC, impulsbredde, interval, overarbejde, mønster, stigende kant, hældning, SPI, UART, videosignal, vindue
- Tidsgrundlag: 2n...1ks/div
- Maks. indgangsspænding: 300V
- Lodret opløsning: 8bit
- Indgangskobling: AC, DC, GND
- Interface: USB
- Producentserie: DSO2000
- Stigetid: =2,4 ns
- Indgangsimpedans: 1MO/20pF
- Yderligere funktioner: Vilkårlig bølgeformgenerator
- Bølgeformer: Vilkårlig, DC, eksponentiel, støj, rampe, rektangulær, sinus
- Bølgeforms frekvensområde: 0,1Hz...1MHz (rampebølgeform), 0,1Hz...10MHz (rektangulær bølgeform), 0,1Hz...25MHz (sinusbølgeform), 1µHz...25MHz (vilkårlig bølgeform)
- Type modulation: AM, FM
- Maksimal bølgeformfrekvens: 25MHz
- Vilkårlig bølgeform: Rekordlængde: 4096
- I overensstemmelse med norm: CAT II 300VEN 61010
- Operationel temperatur: 0...50°C
- Forsyningsspænding: 100...240Vac
- Husstørrelse: 318x110x150mm
- Software: Inkluderet
- Bruttovægt: 2629,9g
Features:
- Generators features:
- 1-channel
- CMOS technology - reduced power consumption
- Measuring instrument features:
- automatically measures frequency, period, peak to peak, RMS, MIN, MAX, MEAN values
- FFT analysis: Hanning, Flattop, Rectangular, Bartletta, Blackman, Hamming
- mathematical functions: addition, subtraction, division, multiplication and FFT
- measurements by means of cursors
- protocols analyse: I2C, SPI, RS232/UART, CAN, LIN
- supports SCPI
- Included in delivery:
- BNC-BNC cable
- mains cable
- manufacturer's calibration certificate
- oscilloscope probe with 10:1 divider
- test leads
- USB cable
- Manufacturer: HANTEK
- Type of oscilloscope: Digital
- Kind of oscilloscope: DSO
- Number of channels: 2
- Band: 150MHz
- Sampling: 1Gsps
- Memory record length: 4Mpts/ch
- Kind of display used: Colour, LCD TFT 7"
- Trigger modes: Automatic, normal, single
- Trigger: CAN/LIN, falling-edge, IIC, impulse width, interval, overtime, pattern, rising-edge, slope, SPI, UART, video signal, window
- Time base: 2n...1ks/div
- Max. input voltage: 300V
- Vertical resolution: 8bit
- Input coupling: AC, DC, GND
- Interface: USB
- Manufacturer series: DSO2000
- Rise time: =2.4ns
- Input impedance: 1MO/20pF
- Additional functions: Arbitrary waveform generator
- Waveforms: Arbitrary, DC, exponential, noise, ramp, rectangular, sinus
- Waveform frequency range: 0,1Hz...1MHz (ramp waveform), 0,1Hz...10MHz (rectangular waveform), 0,1Hz...25MHz (sinus waveform), 1µHz...25MHz (arbitrary waveform)
- Kind of modulation: AM, FM
- Maximum waveform frequency: 25MHz
- Arbitrary waveform: Record length: 4096
- Conform to the norm: CAT II 300VEN 61010
- Operating temperature: 0...50°C
- Supply voltage: 100...240Vac
- Body dimensions: 318x110x150mm
- Software: Included
- Gross weight: 2629.9 g
