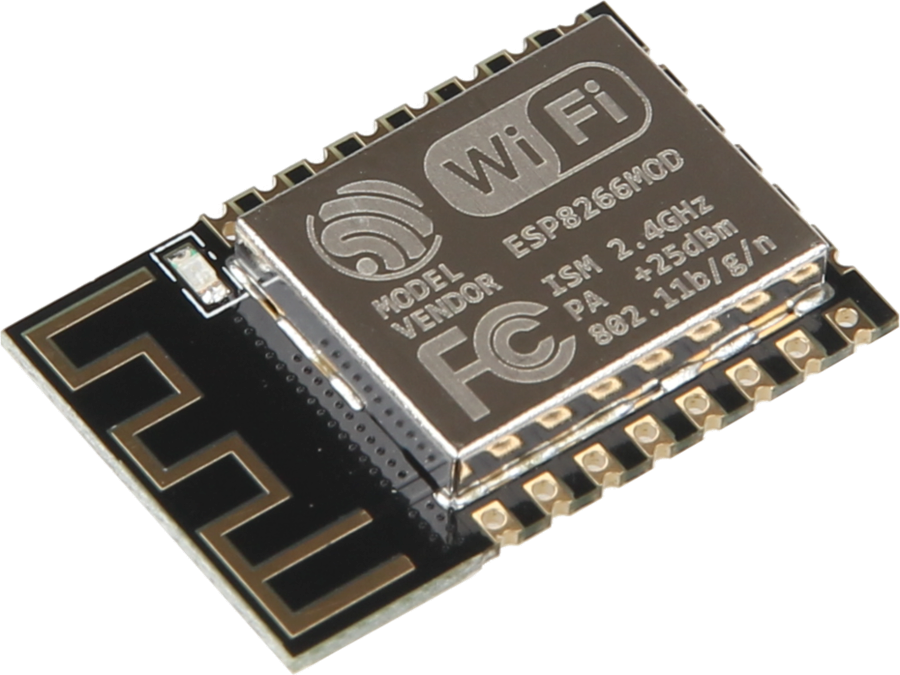

ESP8266-12F - 160MHz, 32bit, 10bit ADC,WIFI
Varenr:
H62781
EAN:
4250236816999
ESP12-F er et ultra-laveffekt UART WiFi-modul specielt designet til behovene i den netværksverden. Den tilbyder et fremragende udvalg af funktioner i det mindste design. Specielt udviklet til mobile enheder og Internet of Things tilbyder ESP12-F en uafhængig netværksløsning. Modulet har kraftfuld indbygget behandling og hukommelsesfunktioner, der tillader minimal udviklingstid under minimal belastning under kørsel.
Tekniske detaljer:
- Model: ESP-12F
- MCU: Low Power 32-bit
- ADC: 10-Bit Analog-Digital-Konverter
- Periferiudstyr: SDIO 2.0, UART, HSPI, I2C, I2S, IRDA, GPIO, PWM
- Antal pins: I alt: 18, GPIO: 10
- Netværk: TCP/IP Protocol-Stack, understøtter antennediversitet
- Netværksprotokoller: IPv4, TCP, UDP, HTTP, FTP
- Infrastruktur-tilstande: STA, AP, STA+AP
- Krypteringer: WEP, TKIP, AES
- WiFi: 802.11 b/g/n 2,4 GHz - 2,5 GHz (2400M - 2483,5M)
- RF Switch: Integreret TR-switch, Balun, LNA, effektforstærker
- Transmissionstilstande: STBC, 1x1 MIMO, 2x1 MIMO
- Pakketransmission: A-MPDU, A-MSDU, 0,4s vagtintervaller
- Operationel temperatur: -40 - +125°C
- Driftsspænding: 3,0 - 3,6 V
- Driftsstrøm: Gennemsnit: 80 mA
- Standby-forbrug: < 1,0 mW (DTIM3)
- Deep Sleep Power: < 10 uA
- Sluk-lækagestrøm: < 5 uA
- Udgangseffekt: +20 dBm (im 802.11b-tilstand)
- Mobile enheder: Understøtter Smart Link til Android- og iOS-enheder
- Andre funktioner: Vågner op og sender pakker i: < 2 ms; Firmwareopgradering via UART Download og OTA; Understøtter cloud server udvikling
- Størrelse: 24x16x3mm
The ESP12-F is an ultra-low-power UART WiFi module specially designed for the needs of the networked world. It offers an excellent range of functions in the smallest design. Specially developed for mobile devices and the Internet of Things, the ESP12-F offers an independent network solution. The module has powerful on-board processing and memory functions that allow minimal development time under minimal load during runtime.
Specifications:
- Model: ESP-12F
- MCU: Low Power 32-Bit
- ADC: 10-Bit Analog-Digital-Converter
- Peripherals: SDIO 2.0, UART, HSPI, I2C, I2S, IRDA, GPIO, PWM
- Amount of Pins: Total: 18, GPIO: 10
- Network: TCP/IP Protocol-Stack, supports antenna diversity
- Network Protocols: IPv4, TCP, UDP, HTTP, FTP
- Infrastructure-Modes: STA, AP, STA+AP
- Encryptions: WEP, TKIP, AES
- WiFi: 802.11 b/g/n 2,4 GHz - 2,5 GHz (2400M - 2483,5M)
- RF Switch: Integrated TR-Switch, Balun, LNA, Power Amplifier
- Transmission Modes: STBC, 1x1 MIMO, 2x1 MIMO
- Packet Transmission: A-MPDU, A-MSDU, 0,4s guard intervals
- Operating Temperature: -40 - +125 °C
- Operating Voltage: 3.0 - 3.6 V
- Operating Current: Average: 80 mA
- Standby Consumption: < 1.0 mW (DTIM3)
- Deep Sleep Power: < 10 uA
- Power Down Leakage Current: < 5 uA
- Output Power: +20 dBm (im 802.11b Mode)
- Mobile Devices: Supports Smart Link for Android and iOS devices
- Other Features: Wakes up and transmits packets in: < 2 ms; Firmware upgrade via UART Download and OTA; Supports cloud server development
- Dimensions: 24 x 16 x 3mm
