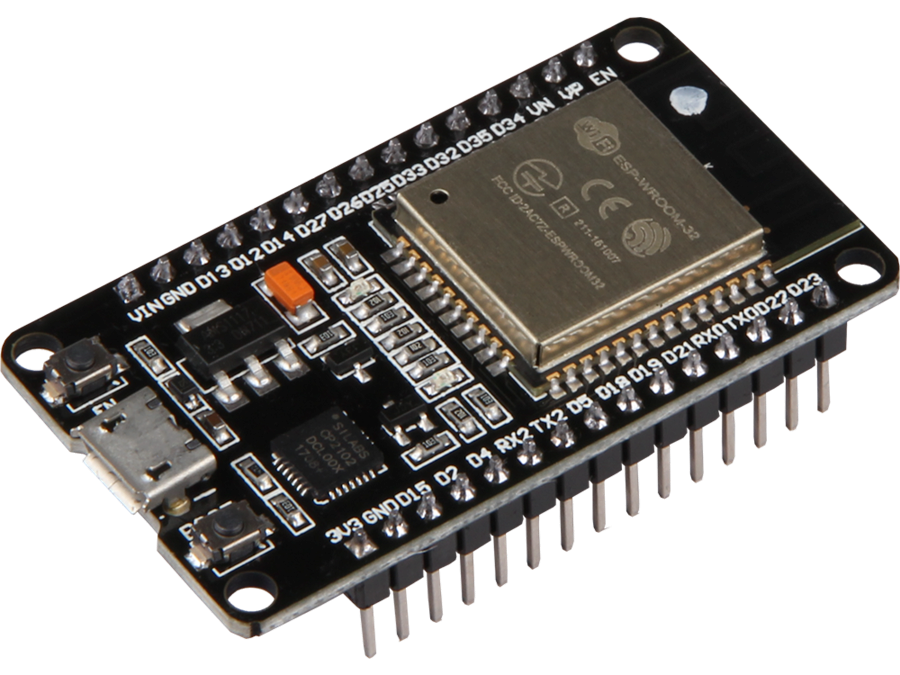

NodeMCU-ESP32, micro USB, WIFI, Bluetooth
Varenr:
H62792
EAN:
4250236816104
Med NodeMCU-ESP32 er behagelig prototyping mulig med simpel programmering via Luascript eller Arduino IDE og det breadboard-kompatible design. Dette kort har 2,4 GHz dual-mode Wifi og en BT trådløs forbindelse. Derudover er en 512 KB SRAM og en 4MB flash-hukommelse integreret i mikrocontroller-udviklingskortet. Kortet har 21 ben til interfaceforbindelse, inklusive I2C, SPI, UART, DAC og ADC.
Tekniske detaljer:
- Model: NodeMCU ESP32
- Type: ESP32
- Processor: Tensilica LX6 Dual-Core
- Urfrekvens: 240 MHz
- SRAM: 512 kB
- Hukommelse: 4 MB
- Trådløs standard: 802.11 b/g/n
- Frekvens: 2,4 GHz
- BT trådløs forbindelse: Classic / LE
- Datagrænseflader: UART / I2C / SPI / DAC / ADC
- Driftsspænding: 3,3V (kan betjenes via 5V-microUSB)
- Operationel temperatur: -40°C - 125°C

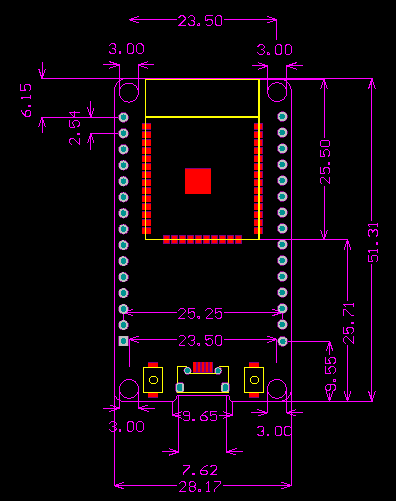

- Størrelse: 48x26x11,5mm
With the NodeMCU-ESP32, comfortable prototyping is possible with simple programming via Luascript or the Arduino IDE and the breadboard-compatible design. This board has 2.4 GHz dual-mode Wifi and a BT wireless connection. In addition, a 512 KB SRAM and a 4MB flash memory are integrated into the microcontroller development board. The board has 21 pins for interface connection, including I2C, SPI, UART, DAC, and ADC.
Specifications:
- Model: NodeMCU ESP32
- Type: ESP32
- Processor: Tensilica LX6 Dual-Core
- Clock Frequency: 240 MHz
- SRAM: 512 kB
- Memory: 4 MB
- Wireless Standard: 802.11 b/g/n
- Frequency: 2,4 GHz
- BT wireless connection: Classic / LE
- Data Interfaces: UART / I2C / SPI / DAC / ADC
- Operating Voltage: 3,3V (operable via 5V-microUSB)
- Operating Temperature: -40°C - 125°C
- Dimensions: 48 x 26 x 11,5mm
