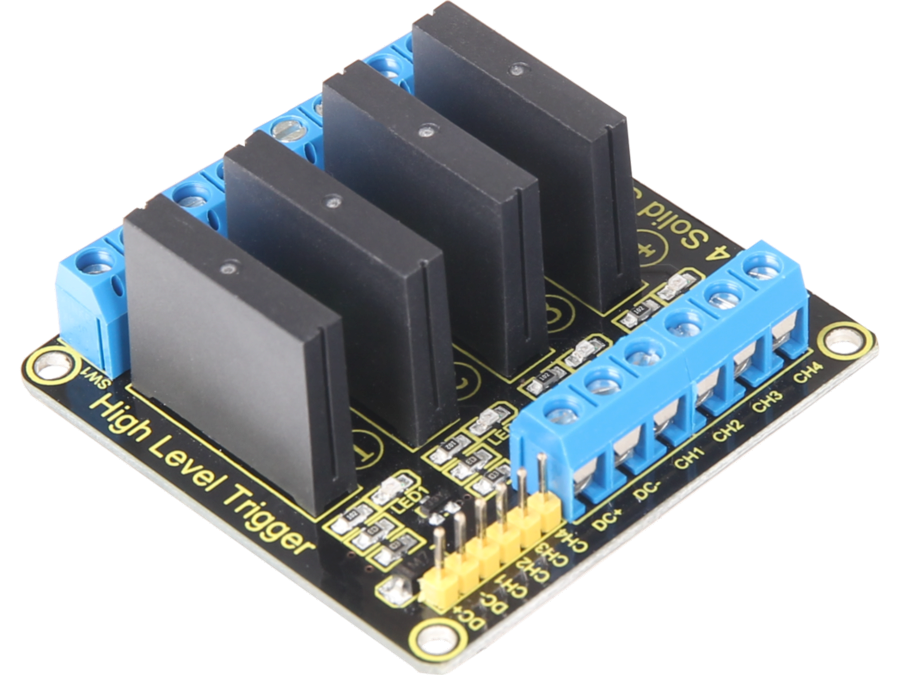

Solid state relæmodul - 4-kanals, 3,3V-5V
Varenr:
H62797
EAN:
4250236820033
Dette 4-kanals halvlederrelæ er velegnet til at skifte vekselstrøm. Den har en galvanisk isolering via integrerede optokoblere, og koblingen af belastningen sker med transistorer, derfor har den en meget længere levetid end mekaniske relæer.
Tekniske detaljer:
- Relætype: OMRON SSR
- Anvendelsesområder: Robot-, mikrocontroller-projekter
- Kompatibel med: Raspberry Pi, Arduino osv.
- Særlige funktioner: Galvanisk isolering, transistor-switched, med resistiv sikring (240V, 2A)
- Forsyningsspænding: 5 Vdc
- Maksimal spændingsbelastning: 240 Vac
- Maksimal strømbelastning: 2 A
- Logisk niveau:
- 0...2,5 Volt: Relæ OFF
- 3,3...5 Volt: Relæ ON
- Hvilestrøm: 0 mA
- Driftsstrøm: 12,5 mA
- Triggerstrøm: 2 mA
- Størrelse: 57x55x23mm
This 4-channel semiconductor relay is suitable for switching alternating current. It has a galvanic isolation by integrated optocouplers and the switching of the load is done with transistors, which is why it has a much longer lifetime than mechanical relays.
Specifications:
- Relay type: OMRON SSR
- Application areas: Robotic, microcontroller projects
- Compatible with: Raspberry Pi, Arduino, etc.
- Special features: Galvanic isolation, transistor-switched, with resistive fuse (240V, 2A)
- Supply voltage: 5 VDC
- Maximum voltage load: 240 VAC
- Maximum current load: 2 A
- Logic level:
- 0...2,5 Volt: Relay OFF
- 3,3...5 Volt: Relay ON
- Quiescent current: 0 mA
- Operating current: 12.5 mA
- Trigger current: 2 mA
- Dimensions: 57 x 55 x 23mm
