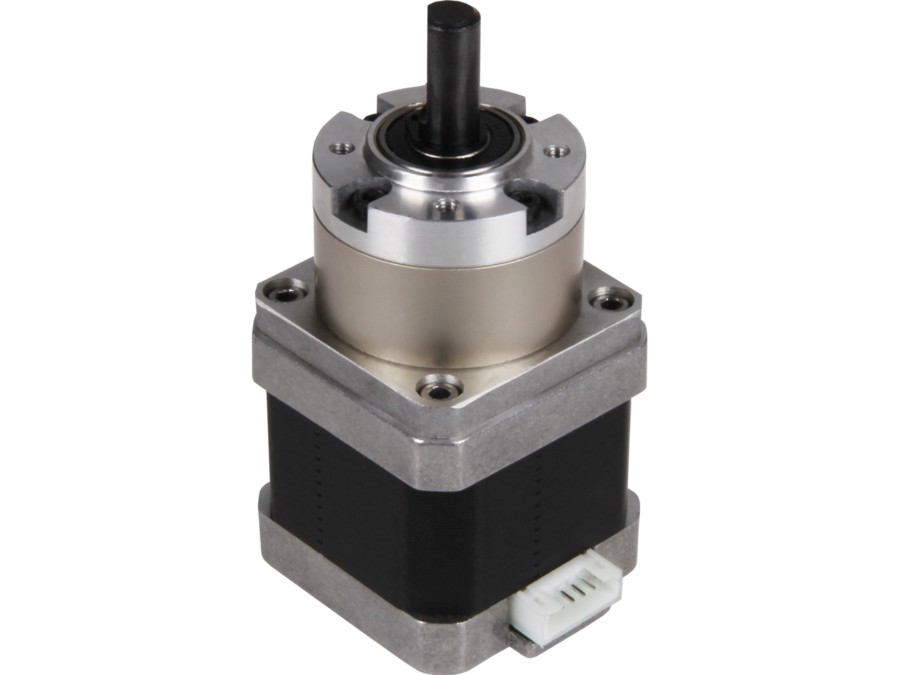

NEMA 17 Steppermotor m. Planetgearkasse
Varenr:
H62804
EAN:
4250236818788
Denne kompakte stepmotor med en 5 2/11: 1 transmission er velegnet til applikationer, hvor du har brug for en præcist og kraftfuldt arbejdende stepmotor.
Tekniske detaljer:
- Specifikation: 42SHD0229-5G
- Skaftmål: Ø 8 x 15mm (enkelt skaft)
- Tilslutning: 6-pol JST PH fatning, 4 ben brugt
- Step pr. omdrejning: 200 (motoraksel), 1036,36 (gearaksel)
- Gearforhold: 5 2/11: 1
- Holdemoment med gearkasse: 1,68 Nm
- Nominel spænding: 2,8 V
- Mærkestrøm: 1,68 A
- Trinvinkel (gearkasseaksel): 0,36°
- Antal faser: 2
- Fasemodstand: 1,65 Ohm
- Faseinduktivitet: 3,2 mH
- Isolationsmodstand: Min. 100 M? ved 500 Vdc
- Isolationsklasse: B (130°)
- Rotationsinerti: 75 g·cm²
- Operationel temperatur: -10 - 50°C
- Størrelse: 42x42x70mm
This compact stepper motor with a 5 2/11 : 1 transmissioned gearing is suitable for applications in which you require a precisely and powerfully working stepper motor.
Specifications:
- Specification: 42SHD0229-5G
- Shaft dimensions: Ø 8 x 15 mm (single shaft)
- Connection: 6-pole JST PH socket, 4 pins used
- Steps per revolution: 200 (motor shaft), 1036,36 (gear shaft)
- Gear ratio: 5 2/11 : 1
- Holding torque with gear box: 1.68 Nm
- Rated voltage: 2.8 V
- Rated current: 1.68 A
- Step angle (gear box shaft): 0.36°
- Amount of Phases: 2
- Phase resistance: 1.65 O
- Phase inductivity: 3.2 mH
- Isolation resistance: Min. 100 M? at 500 V DC
- Isolation class: B (130°)
- Rotational inertia: 75 g·cm²
- Operating temperature: -10 - 50 °C
- Dimensions: 42 x 42 x 70 mm
