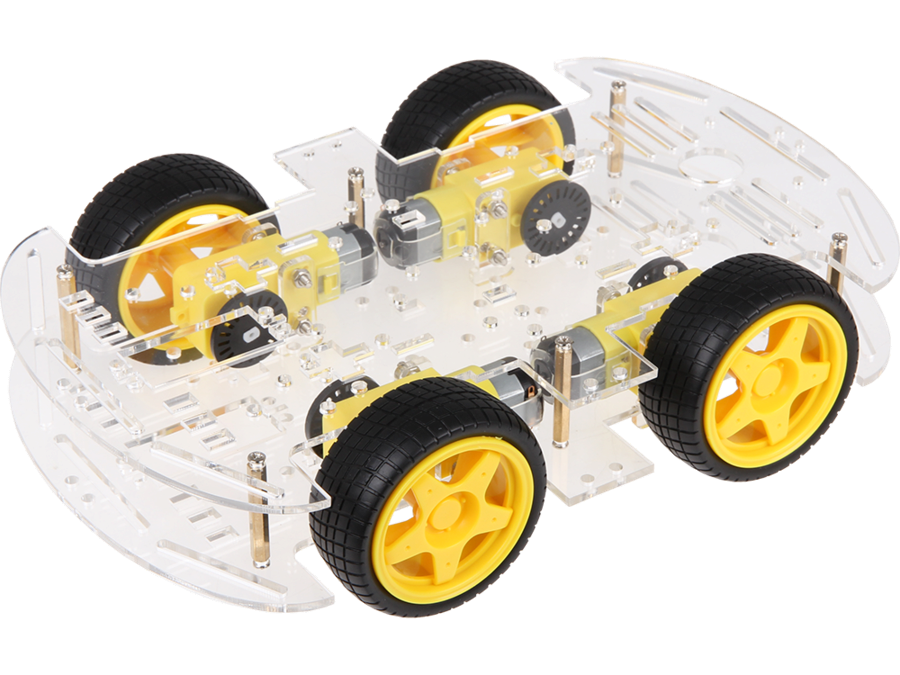

Robotkit - DIY robotbil 4WD, 4,5-9V, 90-300RPM
Varenr:
H62841
EAN:
4250236815527
Dette Robot Car Kit er grundlaget for din egen hjemmebyggede Robot Car, og det indeholder chassiet til en robot eller bil, som kan betjenes via en Arduino. Du kan selv vælge de yderligere nødvendige dele som strømforsyning og motorstyring, vi vil anbefale at bruge JOY-IT tilbehør. Dette sæt indeholder bundplader, 4 motorer med et hjul hver og det tilhørende skruesæt. Boringerne er specielt indstillet til en Arduino.
Tekniske detaljer:
- Spænding: 4,5 - 9 Vdc
- Strøm i hviletilstand: 190 mA
- Motorhastighed/min i tomgang: 90 - 300 o/min
- Moment i gf/cm min: 800 - 1200
- Størrelse (chassis): 280x156x3mm
- Mål (hjul): 65 x 27mm
This Robot Car Kit for Do It Yourself, is the fundament for your own home-built Robot Car, thus it contains the scaffold for a robot or car which is operated by an Arduino. You can choose the further required parts like power supply and motor control by yourself, we would recommend using JOY-IT Accessory. This Kit contains base plates, 4 motors with a wheel each and the matching set of screws. The bores were especially set for an Arduino.
Specifications:
- Voltage: 4.5 - 9 V DC
- Current in idle state: 190 mA
- Engine speed/min in idle: 90 - 300 rpm
- Torque in gf/cm min: 800 - 1200
- Dimensions (chassis): 280 x 156 x 3 mm
- Dimensions (wheel): 65 x 27 mm
