ESP32 kamera modul - 2MP, flash, SD-kort, BT / WiFi
Varenr:
H62983
EAN:
4250236818016

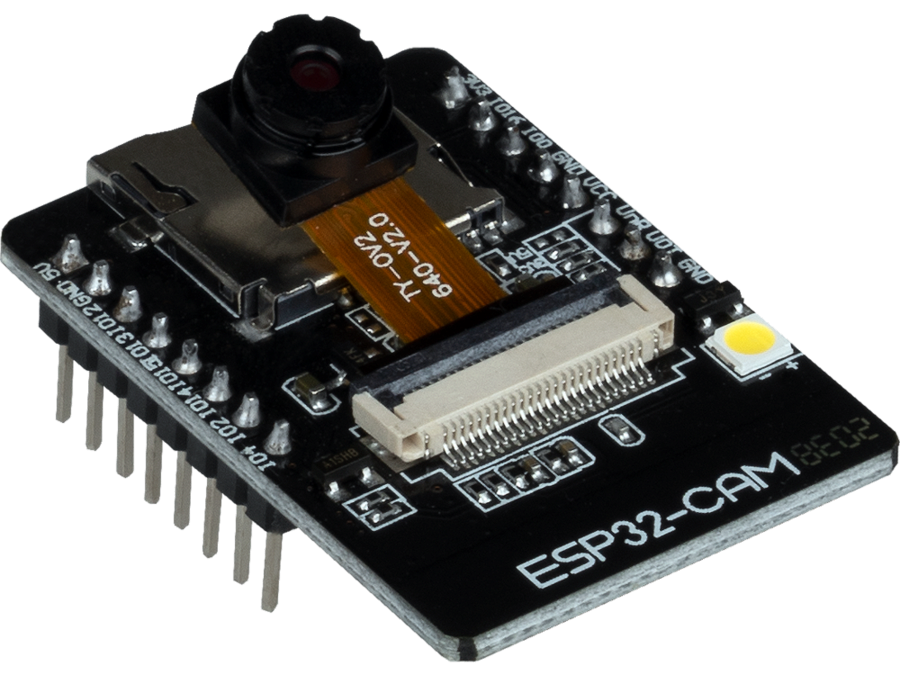

The ESP32-Cam is a compact camera module with low power consumption, multiple interfaces ( SPI / I²C / UART / PWM ) and is therefore suitable for many IoT applications and home projects ( e.g. video surveillance, QR identification and much more ). It is based on the popular ESP32, has a 2 megapixel camera with integrated LED flash and an SD card slot ( up to 4GB memory ), allowing images to be saved directly to the memory card.
Specifications:
- Camera: 2MP OV2640
- Photo formats: JPEG, BMP, Grayscale
- Processor: Dual Core-ESP32 160 MHz
- Besonderheiten: Bright Flash-LED, integrated antenna
- Interfaces: UART, SPI, I2C, PWM, Wi-Fi, BT-wireless connection
- SD-Card slot: Up to 4 GB
- SPI Flash: 32 Mbit
- RAM: 52KB SRAM + 4MB PSRAM
- Supply voltage: 5 V
- Operating temperature: -20°C ~ 85°C
- UART standard Baudrate: 115200 bps
- Power consumption: 6mA in deep sleep; 180 mA without flash; 310 mA with flash at max. brightness
- Security: WPA, WPA2, WPA2-Enterprise, WPS
- Dimensions: 27 x 40,5 x 4,5 mm
