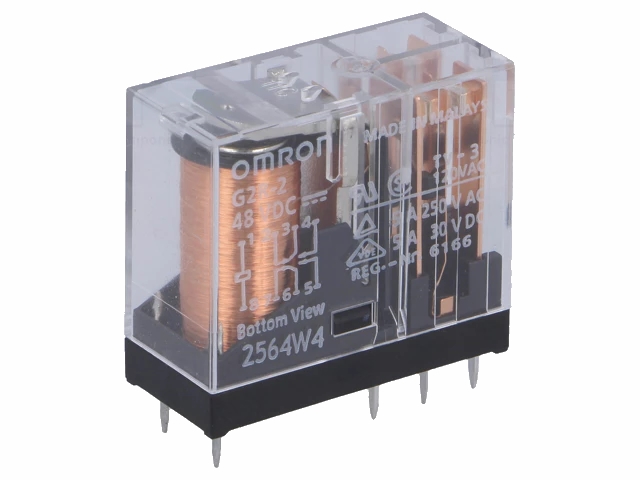

Miniature relæ - 48VDC 5A, 2 x skifte (DPDT), 8-ben 5mm
Varenr:
H63123
EAN:
5705412631235
Tekniske detaljer:
- Producent (varemærke): OMRON OCB
- Type relæ: Elektromagnetisk
- Kontaktkonfiguration: DPDT
- Nominel spolespænding: 48Vdc
- Maks. kontaktstrøm: 5A
- AC kontaktstrøm (ved resistiv belastning): 5A / 250Vac
- DC kontaktstrøm (ved resistiv belastning): 5A / 30Vdc
- Maks. Koblet spænding: 125Vdc, maks. 380Vac
- Relævariant: Miniature, monostabil
- Montering: PCB
- Spolemodstand: 4,17 kOhm
- Driftstid: 15ms
- Husstørrelse: 29x13x25,5mm
- Udgivelsestid: 5ms
- Operationel temperatur: -40...70°C
- Relæserie: G2R
- Kontaktmodstand: 50 mOhm
- Terminalafstand: 5mm
- Spolestrøm: 11,5mA
- Kapslingsbeskrivelse: Standard tætning
- Ledninger: Til PCB
- Relaterede emner: PODST-3
- Bruttovægt: 17g
Specifications:
- Manufacturer: OMRON OCB
- Type of relay: Electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 48V DC
- Contact current max.: 5A
- AC contacts rating @R: 5A / 250V AC
- DC contacts rating @R: 5A / 30V DC
- Switched voltage: Max. 125V DC, max. 380V AC
- Relay variant: Miniature, monostable
- Mounting: PCB
- Coil resistance: 4.17 kOhm
- Operate time: 15ms
- Body dimensions: 29x13x25.5mm
- Release time: 5ms
- Operating temperature: -40...70°C
- Relay series: G2R
- Contact resistance: 50 mOhm
- Terminal pitch: 5mm
- Coil current: 11.5mA
- Enclosure description: Standard seal
- Leads: For PCB
- Related items: PODST-3
- Gross weight: 17 g
