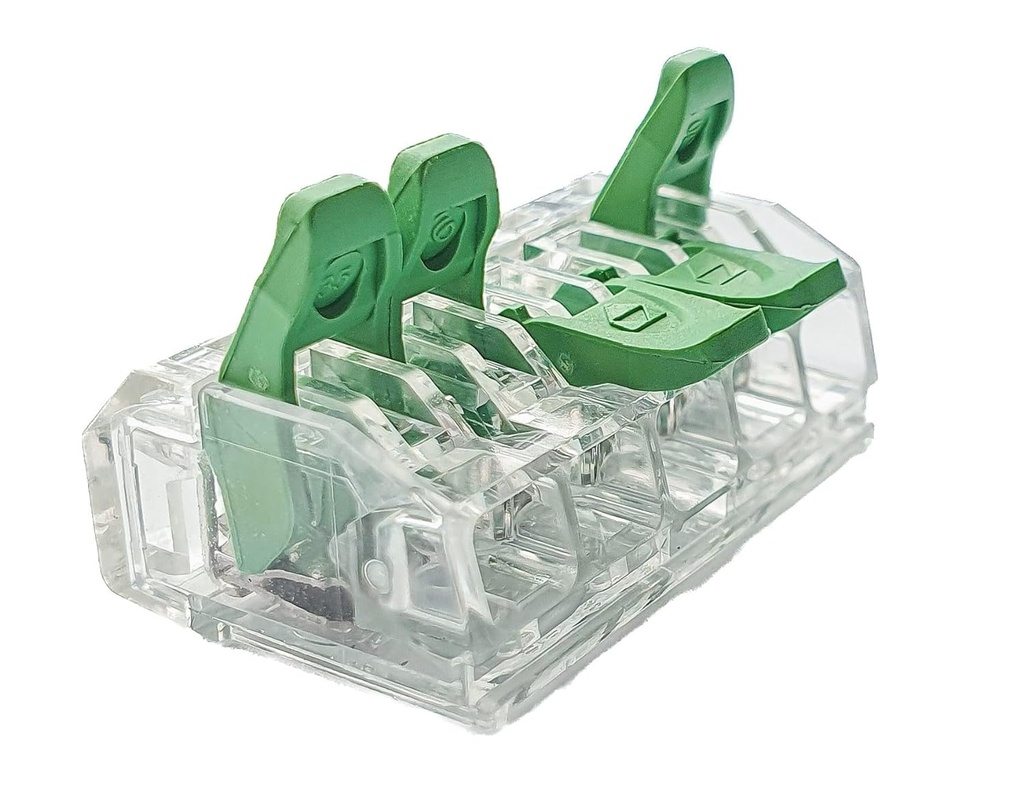

Klemme-samlemuffe - 5 x 0,2-4mm², 32A, alle ledningstyper
Varenr:
H63318
EAN:
5705412633185
Tekniske detaljer:
- Producent (varemærke): DEGSON ELECTRONICS
- Type muffe: Quick splice
- Elektrisk montage: Fjederklemme
- Mekanisk montage: Til kabel
- Trådtværsnit: 0,2...4mm2
- Trådstørrelse: 24AWG...12AWG
- Nominel spænding: 450V
- Mærkestrøm: 32A
- Operationel temperatur: -40...85°C
- Antal terminaler: 5
- Variant: Med greb
- Overensstemmende med normen: IEC, UL, VDE
- Kontaktafstand: 5,6mm
- Bruttovægt: 5,24g
Specifications:
- Manufacturer: DEGSON ELECTRONICS
- Type of splice terminal: Quick splice
- Electrical mounting: Spring clamp
- Wire cross-section: 0.2...4mm2
- Wire size: 24AWG...12AWG
- Rated voltage: 450V
- Current rating: 32A
- Mechanical mounting: For cable
- Operating temperature: -40...85°C
- Number of terminals: 5
- Splice terminal variant: With lever
- Conform to the norm: IEC, UL, VDE
- Contacts pitch: 5.6mm
- Gross weight: 5.24g
