Universal netadapter - 3-12Vdc, 12W (1A) inkl. 11 stik
Varenr:
H63654
EAN:
4040849645686

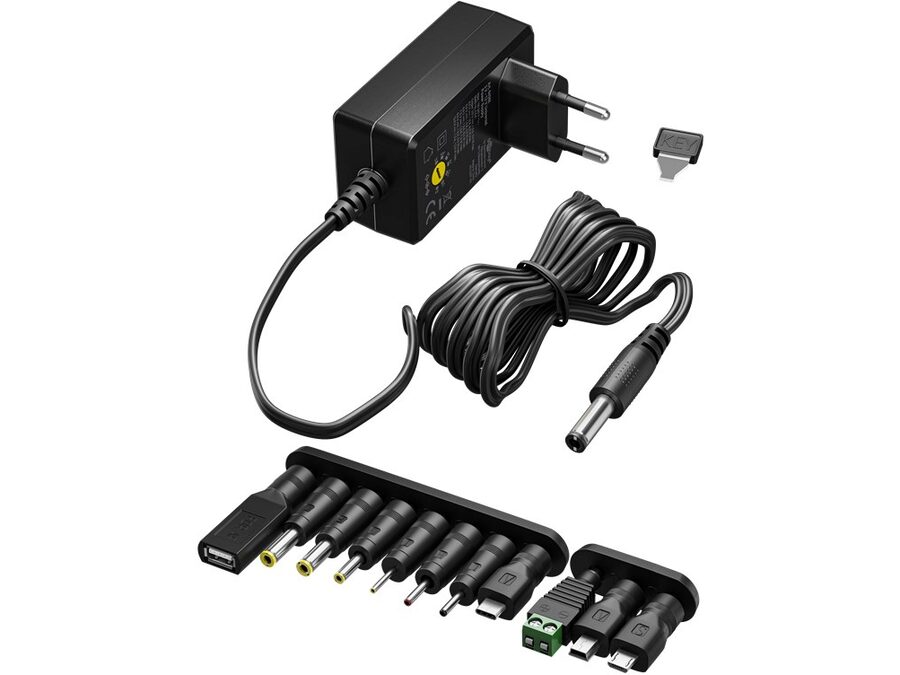

Inkl. 11 adaptere: 7 DC adaptere plus USB-C, USB-A, USB Mini-B, Micro-USB og en skrueterminal.
Egenskaber:
- Strømforsyning med variabel spænding, perfekt som strømkilde til elektroniske enheder såsom tv-boks, router, LED-strips, videokamera, ...
- Udgangsspændingen kan reguleres via den medfølgende drejetast til valg af 3V / 4,5V / 5V / 6V / 7,5V / 9V / 12V ved 1A
- USB-C-adapteren betjener en bred vifte af nye enheder og gør som en ny hardwarestandard strømforsyningen til en levedygtig, langsigtet løsning
- Micro-USB og Mini-USB driver mange små enheder såsom bærbare radioer, batteriopladere, Bluetooth-højttalere eller hovedtelefoner
- Inkl. permanent tilsluttet DC-stik 5,5 x 2,1mm og 6 ekstra DC-adaptere: 5,5x2,5mm, 2,5x0,7mm, 3,0x1,1mm, 3,5x1,35mm, 4,0x1,7mm, 4,8x1,7mm
- Indbygget beskyttelse mod kortslutning, overbelastning, overspænding og overstrøm
Tekniske detaljer:
- ErP:
- Gennemsnitlig aktiv effektivitet: 74,6 %
- Effektivitet ved lav belastning (10 %): 50,8 %
- Strømforbrug uden belastning: 0,09 W
- Maks. ydeevne: 12 W
- Output:
- 3,0 Vdc maks. 1,0 A (3,0 W)
- 4,5 Vdc maks. 1,0 A (4,5 W)
- 5,0 Vdc maks. 1,0 A (5,0 W)
- 6,0 Vdc maks. 1,0 A (6,0 W)
- 7,5 Vdc maks. 1,0 A (7,5 W)
- 9,0 Vdc maks. 1,0 A (9,0 W)
- 12,0 Vdc maks. 1,0 A (12,0 W)
- Stikforbindelser:
- Indgang, spændingsområde: 100 - 240 Vac
- Indgang, type: Europlug (Type C CEE 7/16)
- Kabellængde: 1,8m
- Farve: Sort
- Størrelse:
- Længde: 76,45mm
- Bredde: 44mm
- Højde: 69,2mm
- Vægt: 105 g
Incl. 11 adapters: 7 DC adapters plus USB-C, USB-A, USB Mini-B, Micro-USB and a screw terminal connection.
Features:
- Power supply with variable voltage, perfect as a replacement unit for electronic devices such as TV box, router, LED strips, video camera, digital picture frame, dartboard, baby monitor or toy
- The output voltage can be regulated via the enclosed rotary key for selecting 3 V/4.5 V/5 V/6 V/7.5 V/9 V/12 V at 1 A
- The USB-C adapter serves a wide range of new devices and, as a new hardware standard, makes the switching power supply a viable, long-term option
- Micro-USB and Mini-USB power many small devices such as portable radios, battery chargers, Bluetooth speakers or headphones
- Incl. permanently attached DC plug 5.5 x 2.1 mm and 6 additional DC adapters: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm
- Fuses in the plug-in power supply protect the device against short circuits, overload, overvoltage and overcurrent
Specifications:
- ErP:
- Average active efficiency: 74.6 %
- Efficiency at low load (10 %): 50.8 %
- No-load power consumption: 0.09 W
- Max. performance: 12 W
- Output:
- 3.0 Vdc max. 1.0 A (3.0 W)
- 4.5 Vdc max. 1.0 A (4.5 W)
- 5.0 Vdc max. 1.0 A (5.0 W)
- 6.0 Vdc max. 1.0 A (6.0 W)
- 7.5 Vdc max. 1.0 A (7.5 W)
- 9.0 Vdc max. 1.0 A (9.0 W)
- 12.0 Vdc max. 1.0 A (12.0 W)
- Device connections:
- Input, Voltage Range: 100 - 240 Vac
- Input, type: Europlug (Type C CEE 7/16)
- Cable length: 1.8 m
- Color: Black
- Dimensions:
- Length: 76.45 mm
- Width: 44 mm
- Height: 69.2 mm
- Weight: 105 g
