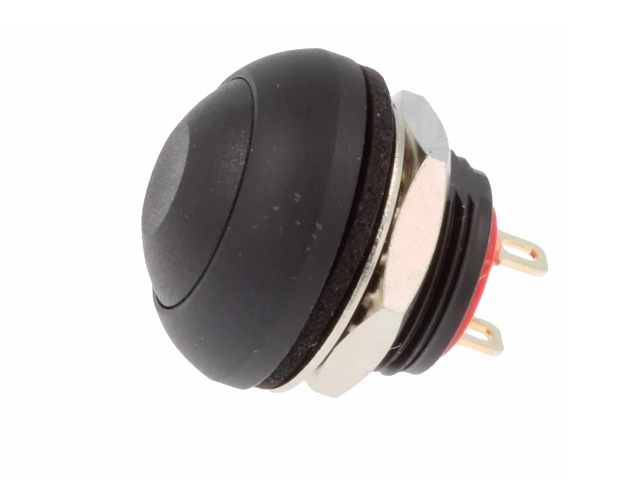

Rund trykkontakt - 1P OFF-(ON), Ø12mm, Sort (IP67)
Varenr:
H63715
EAN:
5705412637152
Tekniske detaljer:
- Producent (varemærke): E-SWITCH
- Type kontakt: Trykknap
- Antal stillinger: 2
- Kontaktkonfiguration: SPST-NO
- DC kontaktstrøm (ved resistiv belastning): 0,1A / 50Vdc
- Skiftemetode: OFF-(ON)
- IP-rating: IP67
- Ledninger: Til lodning
- Operationel temperatur: -30...85°C
- Maks. kontaktmodstand: 50 mOhm
- Mekanisk holdbarhed: 500000 cyklusser
- Knapform: Svamp
- Monteringshul diameter: Ø12mm
- Aktuator farve: Sort
- Montering: På panel
- Antal stabile positioner: 1
- Bruttovægt: 3,52g
Specifications:
- Manufacturer: E-SWITCH
- Type of switch: Push-button
- Number of positions: 2
- Contacts configuration: SPST-NO
- DC contacts rating @R: 0.1A / 50V DC
- Switching method: OFF-(ON)
- IP rating: IP67
- Leads: For soldering
- Operating temperature: -30...85°C
- Max. contact resistance: 50 mOhm
- Mechanical durability: 500000 cycles
- Button shape: Mushroom
- Mounting hole diameter: Ø12mm
- Actuator colour: Black
- Mounting: On panel
- Stable positions number: 1
- Gross weight: 3.52 g
