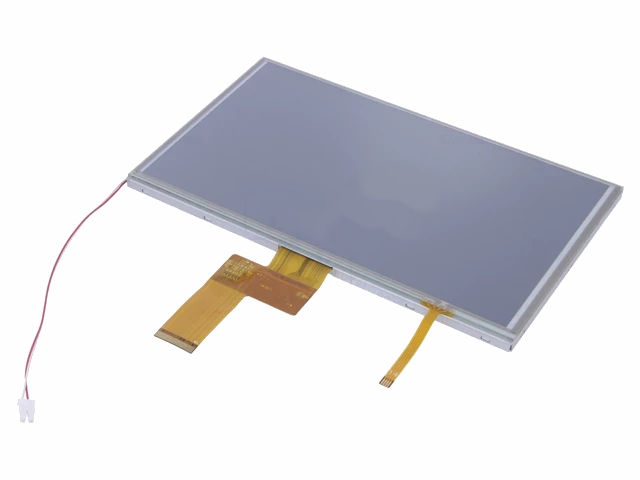

TFT display - 9" 1024x600px, A-touch (211x126x7mm)
Varenr:
H63762
EAN:
5705412637626
9" TFT-skærm med 4-leder analog resistiv touch (pen eller finger).
Tekniske detaljer:
- Producent (varemærke): DISPLAY ELEKTRONIK
- Displaytype: TFT
- Type skærm: Grafisk
- Skærmstørrelse: 9"
- Skærmopløsning: 1024x600
- Belysning: LED
- Kontrast: 800:1
- Skærmmål (H x B): 196,6x114,2mm
- Størrelse: 211,1x126,5x7,1mm
- Interface: LVDS
- Lysstyrke: 480...600cd/m
- Connector pinout layout: 1x40
- Antal ben: 40
- Fladkabel benafstand: 0,5mm
- Baggrundslys farve: Hvid
- Type controller: EK73215 + EK79001H
- Touchpad: Resistiv
- Forsyningsspænding: 3...3,6Vdc
- Bruttovægt: 291g
9" TFT-display with 4-wire analogy resistive touch (stylus or finger).
Specifications:
- Manufacturer: DISPLAY ELEKTRONIK
- Type of display: TFT
- Kind of display: Graphical
- Screen size: 9"
- Display resolution: 1024x600
- Illumination: LED
- Contrast: 800:1
- Window dimensions (H x W): 196.608x114.15mm
- Dimensions: 211.1x126.5x7.1mm
- Interface: LVDS
- Luminosity: 480...600cd/m
- Connector pinout layout: 1x40
- Number of pins: 40
- Ribbon cable pitch: 0.5mm
- Backlight colour: White
- Kind of controller: EK73215 + EK79001H
- Touchpad: Resistive
- Supply voltage: 3...3.6V DC
- Gross weight: 291 g
