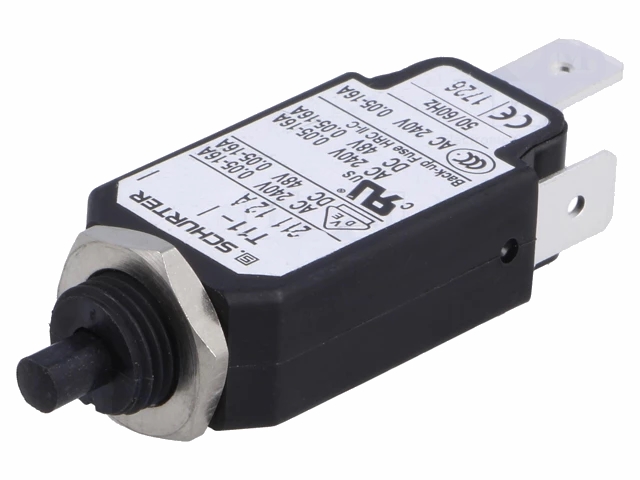

Termisk automatisikring m. reset - 240Vac/48Vdc, 12A (SPDT)
Varenr:
H63872
EAN:
5705412638722
Tekniske detaljer:
- Producent (varemærke): SCHURTER
- Type beskyttelse: Strømafbryder
- Mærkestrøm: 12A
- Kontaktkonfiguration: SPST
- Antal poler: 1
- Montering: Skrue
- Operationel temperatur: -5...60°C
- Ledninger: Stik 6,3x0,8mm
- Monteringshul diameter: Ø9,6mm
- Gevindlængde: 6mm
- Relaterede varer: TZZ01
- Anvendelse af afbrydere: Husholdningsapparater, industriapparater, UPS
- Dielektrisk styrke: 1,5kVac
- Handelsnavn: MCB
- Nominel spænding: 48Vdc/240Vac
- Bruttovægt: 11,15g
Specifications:
- Manufacturer: SCHURTER
- Type of protection: Circuit breaker
- Current rating: 12A
- Contacts configuration: SPST
- Number of poles: 1
- Mounting: Screw
- Operating temperature: -5...60°C
- Leads: Connectors 6,3x0,8mm
- Mounting hole diameter: Ø9.6mm
- Thread length: 6mm
- Related items: TZZ01
- Breakers application: Household appliance, industrial appliance, UPS
- Dielectric strength: 1.5kV AC
- Trade name: MCB
- Rated voltage: 48V DC/240V AC
- Gross weight: 11.15 g
