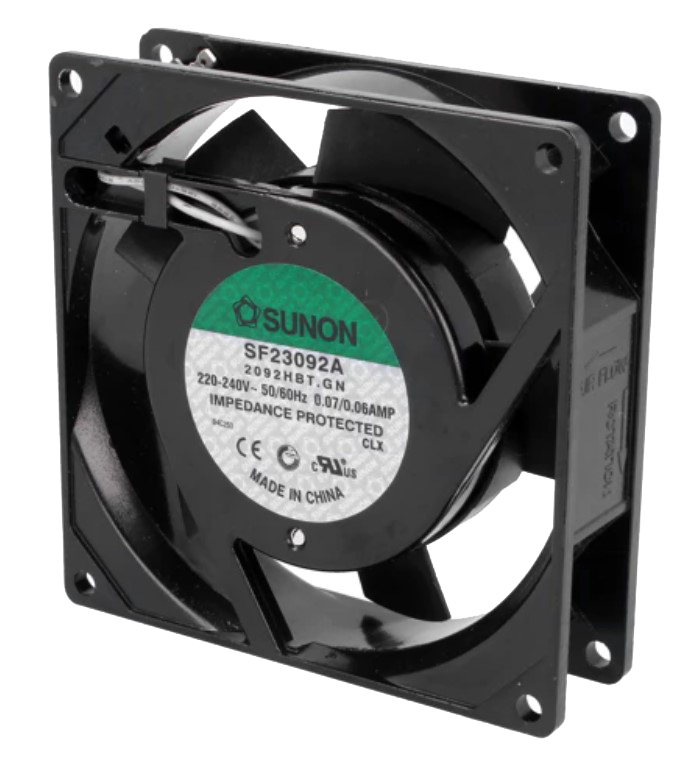

AC blæser - 92x92x25mm 230V 14,5W (2,8mm spadestik)
Varenr:
H64004
EAN:
5705412640046
Tekniske detaljer:
- Producent (varemærke): SUNON
- Ventilatortype: AC, Aksial
- Ventilatormål: 92x92x25mm
- Strømforbrug: 14,5W
- Strømstyrke: 70mA
- Luftflow: 51m3/t
- Støjniveau: 37dBA
- Type leje: Kugleleje
- Rotationshastighed: 2350 rpm
- Strøm- og strømforbrugstolerance: ±15 %
- Frekvens: 50Hz
- Min. isolationsmodstand: 500 MOhm
- Glidelejemateriale: Termoplastisk
- Kapslingsmateriale: Aluminium
- Ledninger: Stik 2,8x0,3mm
- Operationel temperatur: -10...70°C
- Brandklasse: UL94V-0
- Statisk tryk: 3,3mm H
- Forsyningsspænding:
- 230Vac
- Bruttovægt: 253,7g
Specifications:
- Manufacturer: SUNON
- Type of fan: AC, Axial
- Fan dimensions: 92x92x25mm
- Power consumption: 14.5W
- Current rating: 70mA
- Fan efficiency: 51m3/h
- Noise level: 37dBA
- Kind of Bearing: Ball bearing
- Rotational rate/speed: 2350rpm
- Current and power consumption tolerance: ±15%
- Frequency: 50Hz
- Min. insulation resistance: 500 MOhm
- Impeller material: Thermoplastic
- Enclosure material: Aluminium
- Leads: Connectors 2,8x0,3mm
- Operating temperature: -10...70°C
- Flammability rating: UL94V-0
- Static pressure: 3.3mm H
- Supply voltage:
- 230V AC
- Gross weight: 253.7 g
