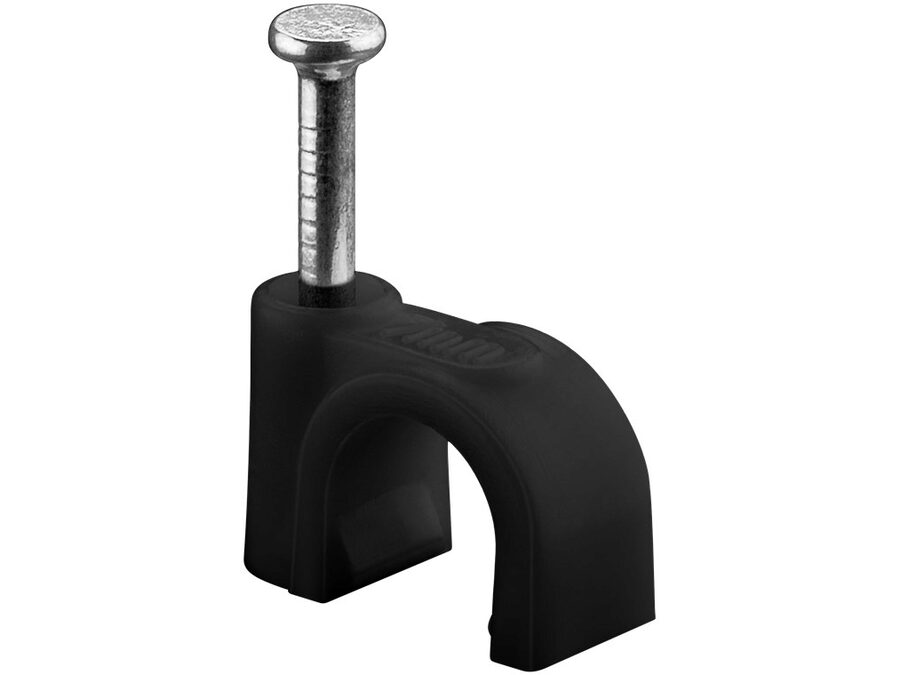

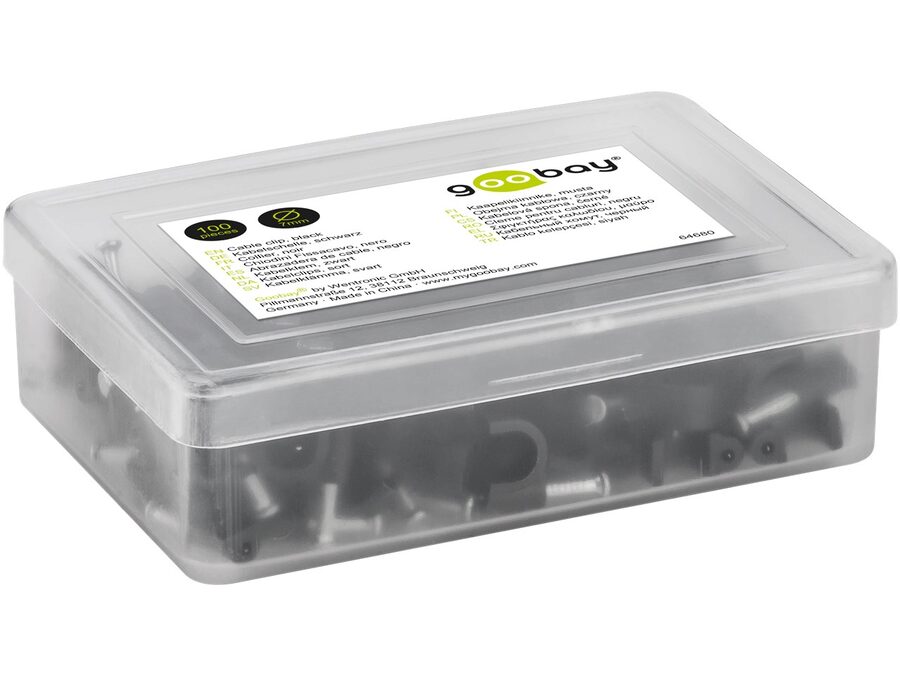

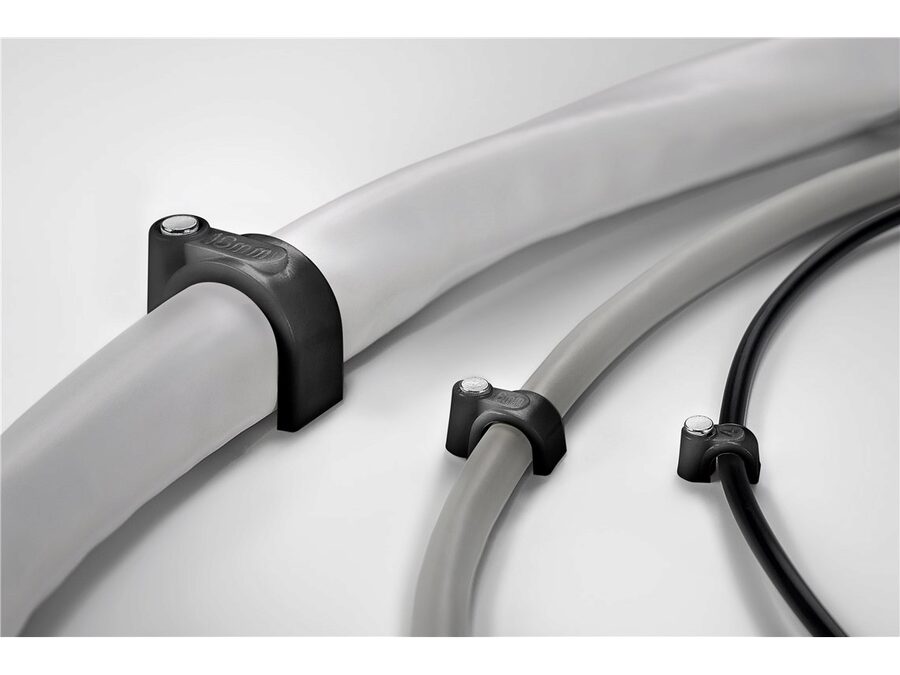

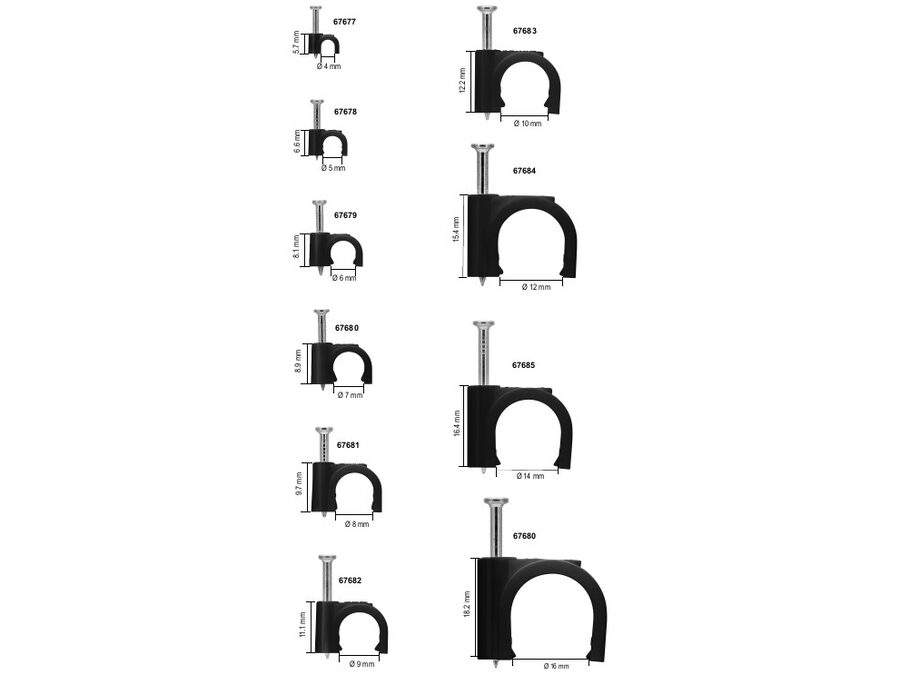

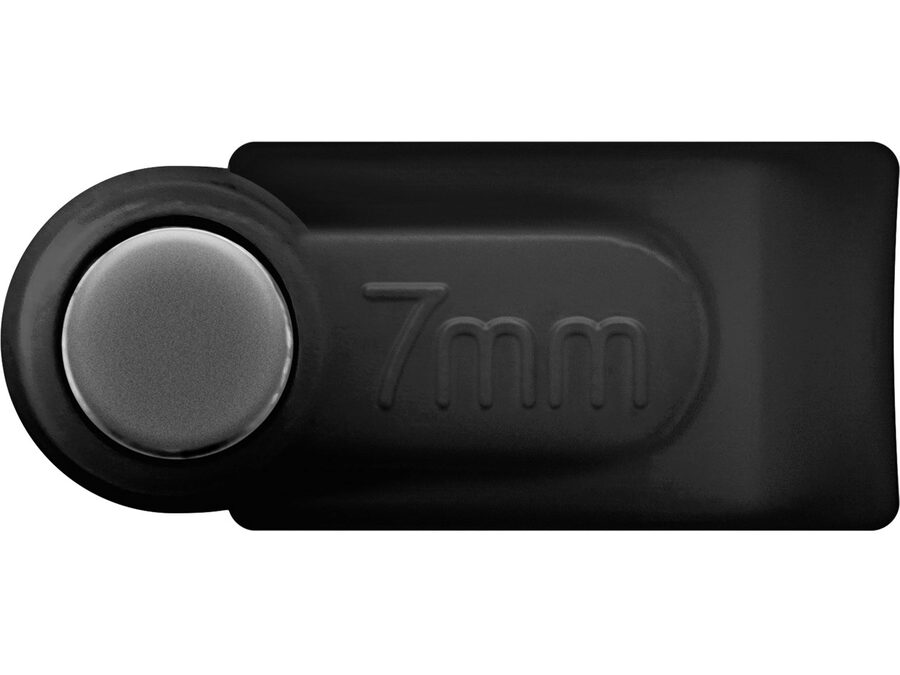

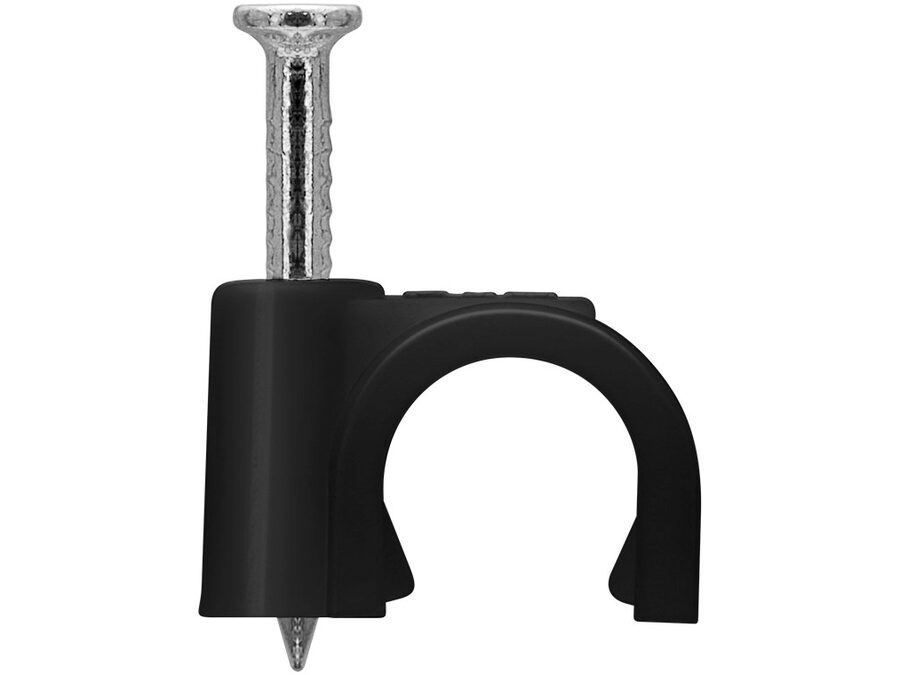

Kabelsøm-clips - Rund Ø5-7mm, Sort (100 stk. box)

Kabelsøm-clips - Rund Ø5-7mm, Sort (100 stk. box)

Varenr: H64089

EAN: 4040849646805

16 kanal, 8-kanal POE 4K NVR.

Egenskaber:

Indgang: Maks. 16 kanaler
Understøåtter (to-vejs) audio
HD-output: 4K (3840 x 2160)
Videokomprimering: H265/H264/H265+/H264+
8 x uafhængige 100 Mbps POE netværksgrænseflader

Tekniske detaljer:

System:
- Hovedprocessor: Dual Cortex A53
- Operativsystem: Embedded LINUX
Video:
- Indgang: 16CH (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF)
- Udgang: 1*HD,1*VGA
Lyd:
- Indgang: 1 port RCA, understøtter 16CH IPC audio input
- Udgang: 1 port RCA (lineær, 1k?), HD-udgang
- Lydbithastighed: 64 kbps
- Lydkomprimeringsstandard: G711U, G711A
- Samtaleanlæg: Support (to-vejs)
Alarm:
- Sensorindgang: N/A
- Udgang: N/A
- Bevægelsesdetektion: 16-kanals, MD-zoner: 396 (22 × 18)
- Trigger hændelser: Optagelse, e-mail, FTP, snapshot og skærmtips
Display:
- HD-udgang: 4K (3840*2160)/2K (2560*1440)/1920*1080/1280*1024/1280*720/1024*768
- VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Displayopdeling: 16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH
- Digital zoom: JA
- OSD: Kameratitel, Tid, Optagelse, Bevægelsesdetektering, Hændelsesalarm
Optagelse:

Videokomprimering: H265/H264/H265+/H264+

Opløsning: 12MP (4000*3000),8MP (3840×2160),6MP (3072×2048),5MP (2592×1944),4MP (2688×1520/2560×1440),3MP (2048×1536),10800 1920×1080),1280x1024,960P (1280x960),720P (1280×720),960H (960x480) D1 (720×576/720×480)

Optagelseshastighed: 12MP@10CHx25fps,4K@16CHx25fps,5MP@16CH×25fps,4MP@16CHx25fps,3MP@16CH×25fps,1080P@16CH×25fps, 960P@16CH×25fps@16CH×02CHfps@16CHx25fps@16CHfps@1xfps@fps,3MP@16CH×25fps,

Optagetilstand: Manuel\Timer\Bevægelsesdetektion\Smart hændelse

Afspilning og sikkerhedskopiering:

Lokal synkroniseret afspilning: 1CH 12MP@30fps,1CH 8MP@30fps,2CH 5MP@30fps,4CH 4MP@30fps,7CH 1080P@30fps,16CH 720P@30fps,16CH D1@30fps
Afkodningsevne: 1080P (1920x1080)@210fps
Fjernsynk afspilning: Ja
Søgetilstand: ALLE, Timing Video, Motion Detection, Tag-søgning, Smart Event, Pictrue, Log
Afspilningsfunktioner: Afspil, pause, hurtigt frem, tilbage, forrige billede, næste billede, elektronisk zoom, klip, lyd
Sikkerhedskopieringstilstand: USB-enhed/netværk

Netværk:

Interface: 1 x RJ45 (10M/100M/1000M selvadaptiv Ethernet-grænseflade)
Indgående båndbredde: 128 Mbps
Udgående båndbredde: 80 Mbps
Netværksfunktioner: IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE
Onvif: Profil S, Profil T
Webbrowser: Edge, IE8-11, Google Chrome, Firefox, Safari
CMS-software: Understøtter Windows 7/Windows 8/Windows 10/Windows 11/MAC OS
Cloud Support: Ja
Smarttelefon: iPhone, Android
POE: 8 x uafhængige 100 Mbps POE-netværksgrænseflader (udgangseffekt AT-tilstand 30 W pr. interface, AF-tilstand 15 W pr. interface), 45/78 linjerækkefølge, samlet udgangseffekt 72 W, understøttelse af Plug and Play, understøttelse af forlænget tilstand for netværkskabel Maks. 200 mio
WIFI: N/A

Opbevaring:

Interface Type: 1 x SATA Hard Disk Interface (3,5" SATA)
Kapacitet: Op til 10TB kapacitet

Generel:

Sprog: engelsk, UI forenklet kinesisk, traditionel kinesisk, polskisk, tjekkisk, russisk, arabisk, tysk, fransk, portugisisk, spansk, italiensk, ungarsk, koreansk, hollandsk, græsk, janpanesisk, ukrainsk, kasakhisk
USB-grænseflade: 2 USB 2.0-grænseflader
RS485: N/A
Strømforbrug: DC48V/1,87A ? 10W (uden harddisk)
Operationel temperatur: -10...50°C, 10...90% luftfugtighed
Produkstørrelse (B×D×H): 260 * 230 * 43 (mm)
Nettovægt: 1,01kg (uden HDD)
Bruttovægt: 1,75kg (uden HDD)

16CH 8CH POE 4K NVR.

Features:

Input: Max. 16CH
support (two-way) Audio
HD Output:4K(3840x2160)
Video Compression : H265/H264/H265+/H264+
8 x Independent 100Mbps POE Network Interfaces

Specifications:

System:
- Main Processor: Dual Cortex A53
- Operating System: Embedded LINUX
Video:
- Input: 16CH(12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF)
- Output: 1*HD,1*VGA
Audio:
- Input: 1 Port RCA, support 16CH IPC audio input
- Output: 1 Port RCA(Linear, 1k?), HD output
- Audio Bit Rate: 64kbps
- Audio Compression standard: G711U, G711A
- Intercom: Support (two-way)
Alarm:
- Sensor Input: N/A
- Output: N/A
- Motion Detection: 16 Channel, MD Zones: 396 (22 × 18)
- Trigger Events: Recording, Email, FTP, Snapshot and Screen Tips
Display:
- HD Output: 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768
- VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Display Split: 16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH
- Digital Zoom: YES
- OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm
Recording:

Video Compression: H265/H264/H265+/H264+

Resolution: 12MP(4000*3000),8MP(3840×2160),6MP(3072*2048),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),1280x1024,960P(1280x960),720P(1280×720),960H(960x480)D1(720×576/720×480)

Record Rate: 12MP@10CHx25fps,4K@16CHx25fps,5MP@16CH×25fps,4MP@16CHx25fps,3MP@16CH×25fps,1080P@16CH×25fps, 960P@16CH×25fps,720P@16CH×25fps, D1@16CH×25fps

Record Mode: Manual\Timer\Motion Detection\Smart Event

Playback & Backup:

Local Sync Playback: 1CH 12MP@30fps,1CH 8MP@30fps,2CH 5MP@30fps,4CH 4MP@30fps,7CH 1080P@30fps,16CH 720P@30fps,16CH D1@30fps
Decode Capability: 1080P(1920x1080)@210fps
Remote Sync Playback: YES
Search Mode: ALL, Timing Video, Motion Detection, Tag search,Smart Event,Pictrue,Log
Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
Backup Mode: USB Device/Network

Network:

Interface: 1 x RJ45(10M/100M/1000M self-adaptive Ethernet Interface)
Incoming Bandwidth: 128Mbps
Outgoing Bandwidth: 80Mbps
Network Functions: IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif: Profile S, Profile T
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software: Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
Cloud Support: Yes
Smart Phone: iPhone, Android
POE: 8 x Independent 100Mbps POE Network Interfaces(Output Power AT mode 30W per Interface, AF mode 15W per Interface), 45/78 line order, Total Power Output 72W, Support Plug and Play, Support network cable extended mode Max. 200M
WIFI: N/A

Storage:

Interface Type: 1 x SATA Hard Disk Interface (3.5" SATA)
Capacity: Up to 10TB capacity

General:

Language: English, UI Simplified Chinese, Traditional Chinese, Polski, Czech, Russian, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh
USB Interface: 2 USB 2.0 Interfaces
RS485: N/A
Power consumption: DC48V/1.87A ? 10W (Without Hard Disk)
Working Environment: -10...50°C, 10....90% humidity
Product Dimension (W×D×H): 260 x 230x 43mm
Net Weight: 1.01kg (without HDD)
Gross Weight: 1.75kg (without HDD)
