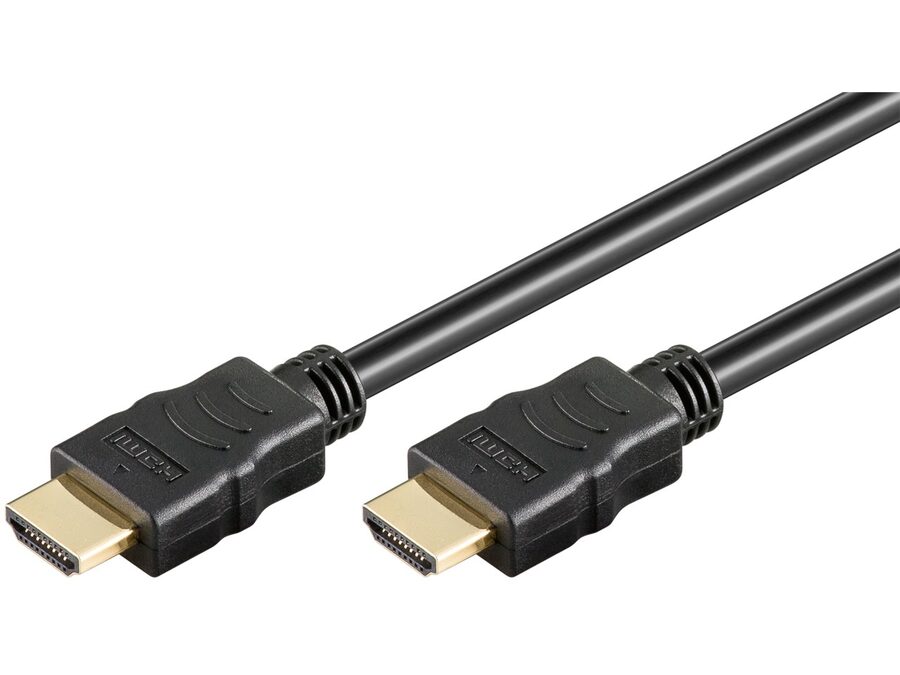

Ultra High Speed HDMI 2.1 kabel - 2xHDMI han 8K Sort (7,5m)
Varenr:
H64324
EAN:
4040849649851
Ultra High Speed HDMI kabel med Ethernet. Den seneste udvikling af HDMI (2.1) tilbyder en maks. båndbredde på 48 Gbps for at understøtte ukomprimerede 8K-videoer med HDR op til 60Hz eller endda 10K-videoer med 30Hz. Naturligvis er grænsefladen bagud-kompatibel. Således kan enheder med ældre HDMI standarder også tilsluttes med dette kabel.
Tekniske detaljer:
- Stikforbindelser:
- 2 x HDMI-hanstik (type A)
- Kabelaflastning: Ja
- Stik, længde: 42,1mm
- Stik, bredde: 20,4mm
- Stik, højde: 11,4mm
- Stik, kontaktmateriale: Forgyldt
- Stik, husmateriale: PVC
- Kabel:
- Ledertværsnit: 0,254mm² (AWG30)
- Kabeltype: Rundt kabel
- Afskærmning: Flet (alu) 144x
- Ledermateriale: CU (kobber)
- Kabelkappediameter (ca.): 6,3mm
- Kabellængde: 7,5m
- Kabelstruktur: 19+1
- Signaloverførsel:
- Maks. transmissionshastighed: 48 Gbit/s
- Andre understøttede standarder: HDR (High Dynamic Range), HDMI Ethernet Channel (HEC), 3D, HDCP 2.2, Consumer Electronics Control (CEC)
- Understøttede videostandarder: 4K/120Hz (3840 x 2160) UHD, 8K/60Hz (7680x4320) Fuld UHD
- Maks. opløsning: 8K/60Hz (7680x4320) Fuld UHD
- Understøttede lydstandarder: Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC)
- Generel:
- Farve: Sort
- Materiale: PVC
- Operationel temperatur: -10...80°C
- Garanti: 2 år
Ultra High Speed HDMI Cable with Ethernet. 8K/60Hz.
Specifications:
- Connections:
- Connection, type: HDMI connector male (type A)
- Kink protection: Yes
- Connection, length: 42.1 mm
- Connection, width: 20.4 mm
- Connection, height: 11.4 mm
- Connection, shielding: Yes
- Connection type: HDMI connector male (type A)
- Connection 2, length: 42.1 mm
- Connection, contact material: Gold-plated
- Connection 2, width: 20.4 mm
- Connection, housing material: PVC
- Connection 2, height: 11.4 mm
- Cable:
- Inner conductor cross-section: 0.254 mm²
- Cable type: Round cable
- Number of shieldings: 2 x
- Type 2, shielding: Braid (aluminium) 144x
- AWG: 30
- Inner conductor material: CU (copper)
- Inner Conductor number: 1 pieces
- Cable sheath diameter (approx.): 6.3 mm
- Cable length: 7.5 m
- Ferrite core: No
- Cable structure: 19+1
- Signal transmission:
- Max. transmission rate: 48 Gbit/s
- Other supported standards: HDR (High Dynamic Range), HDMI Ethernet Channel (HEC), 3D, HDCP 2.2, Consumer Electronics Control (CEC)
- Supported video standards: 4K/120Hz (3840 x 2160) UHD, 8K/60Hz (7680x4320) Full UHD
- Max. resolution: 8K/60Hz (7680x4320) Full UHD
- Supported audio standards: Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC)
- General:
- Goobay Version: 2.1
- Color: Black
- Material: PVC
- Operating temperature: -10...80°C
- Warranty: 2 years
