HDMI 2.0 splitter - 1 ind, 2 ud, 4K/60Hz, HDCP

opdeler 1x HDMI-indgangssignal i 2x HDMI-udgangssignaler

Egenskaber:

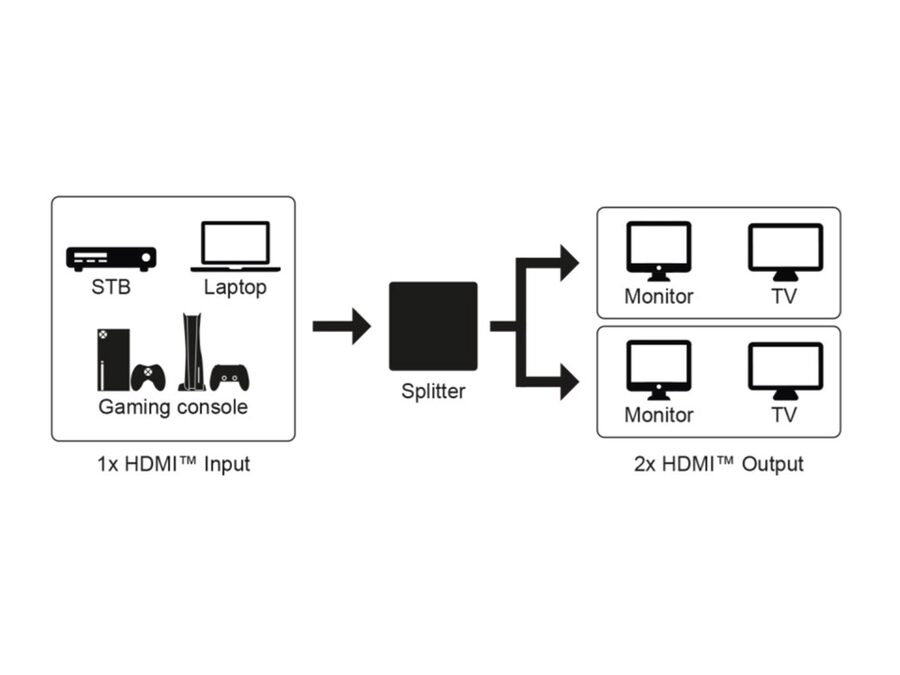

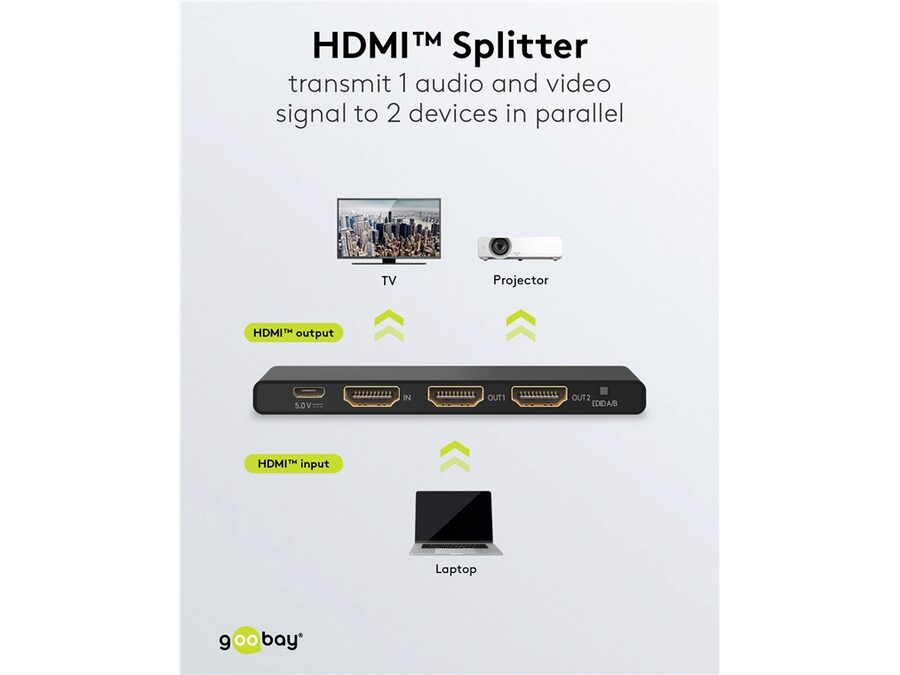

HDMI-splitteren duplikerer 1x HDMI-indgangssignal til op til 2x HDMI-udgange såsom tv, skærm eller projektor.
HDMI-multistikket spejler lyd- og videosignaler til de tilsluttede enheder, f.eks. til samtidig projektion i forskellige rum.

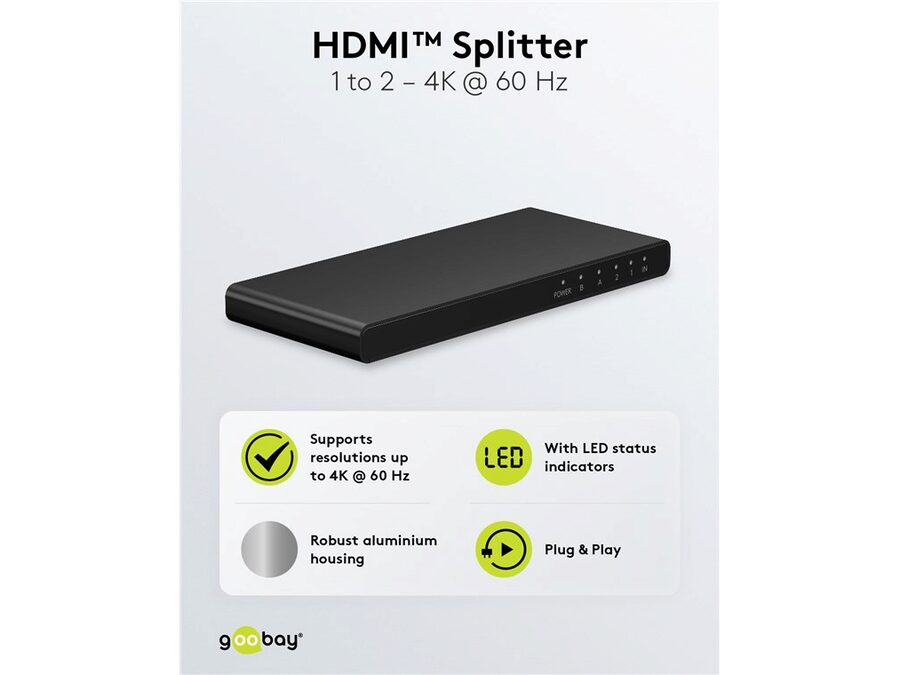

HDMI splitterboksen 1x2 understøtter opløsninger op til 4K ved 60 Hz (bagudkompatibel).

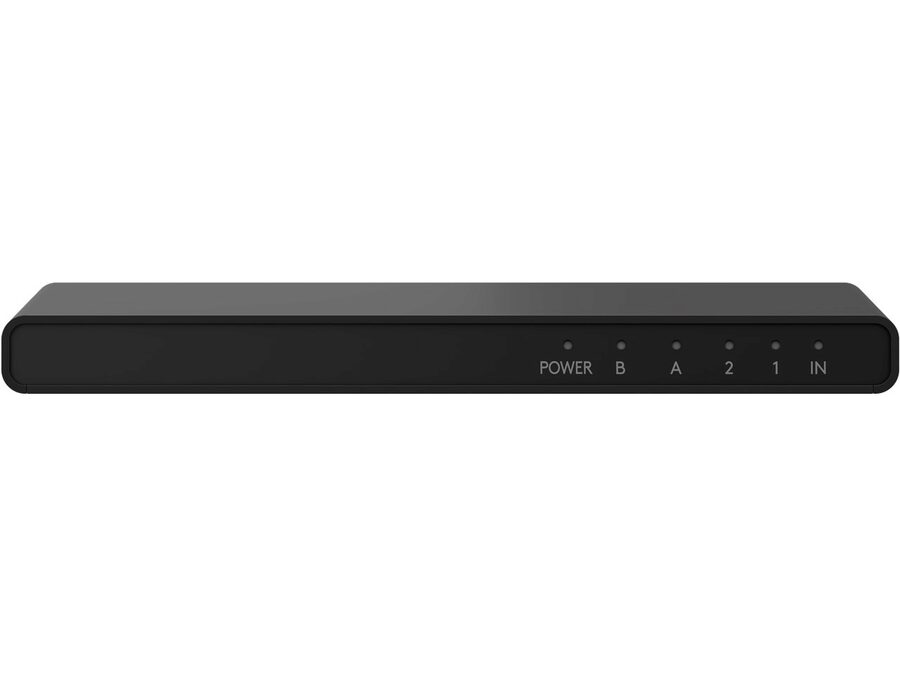

LED-displayet på HDMI-forlængeren viser, hvilke forbindelser der er aktiveret.

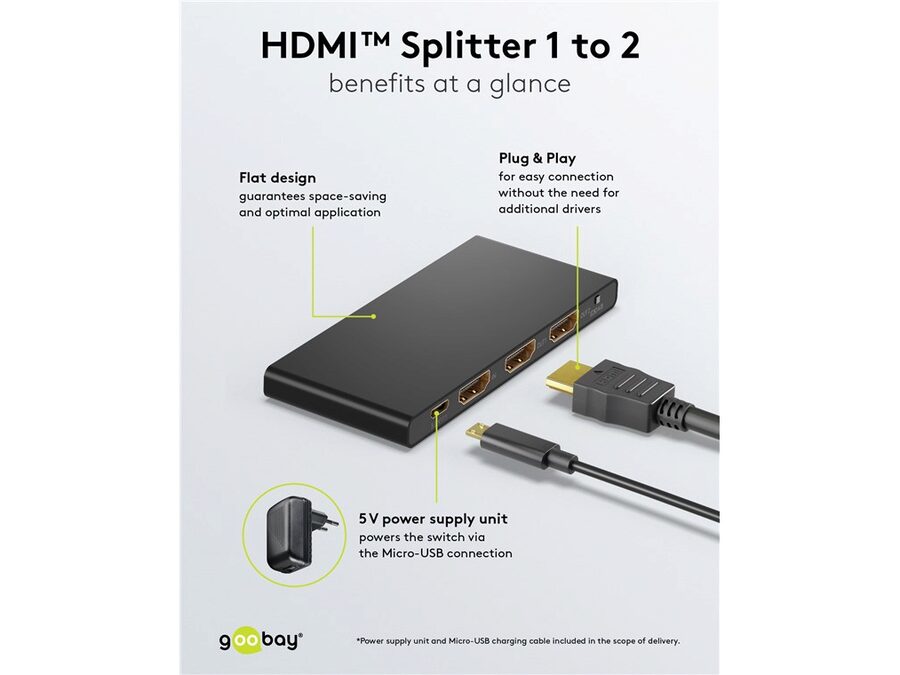

HDMI-adapter 1 i 2 ud i et fladt design, udstyret med varmeafledende aluminiumshus og guldbelagte stik.
Plug & Play giver mulighed for en nem forbindelse uden behov for at installere yderligere drivere.

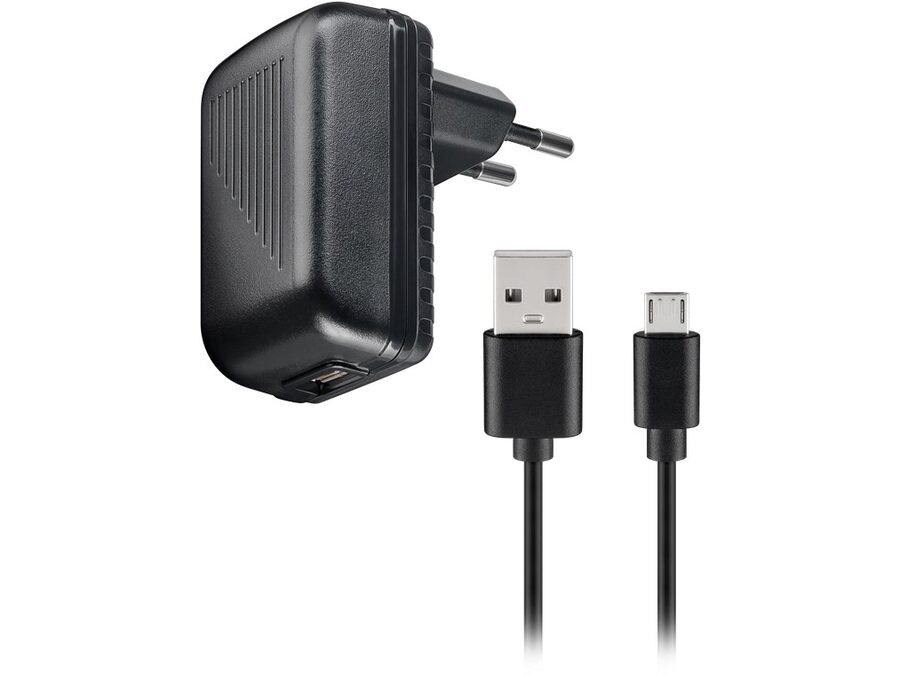

Strømforsynes via 5 V strømforsyningsenhed og Micro-USB kabel (begge inkluderet i leveringsomfanget).

Mærkning:
- Ansvarsfraskrivelse: Alle mærkenavne er registrerede varemærker tilhørende deres ejere. Begreberne HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress og HDMI-logoerne er varemærker eller registrerede varemærker tilhørende HDMI LicensingAdministrator, Inc.
Stikforbindelser:
- Tilslutning 1, type: HDMI hun (Type A)
- Tilslutningstype: HDMI hun (type A)
Stikforbindelser:
- Indgang, type: HDMI hun (Type A) x in
- Udgang, type: 2x HDMI hun (type A)
Signaloverførsel:
- Maks. transmissionshastighed: 18 Gbit/s
- Andre understøttede standarder: HDCP 2.2, HDCP 1.4
- Understøttede videostandarder: 4K/60Hz (3840 x 2160) UHD, 4K/30Hz (3840 x 2160) UHD, Fuld HD 1080p (60 Hz), Fuld HD 1080i (60 Hz), 3D, HDCP 2.2
- Signalretning: Unidirektional
- Maks. opløsning: 4K/60Hz (3840 x 2160) UHD
- Understøttede lydstandarder: Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Audio Return Channel ( BUE)
Generel:
- Goobay version: 2.0
- Farve: Sort
- Operationel temperatur: 0...40°C

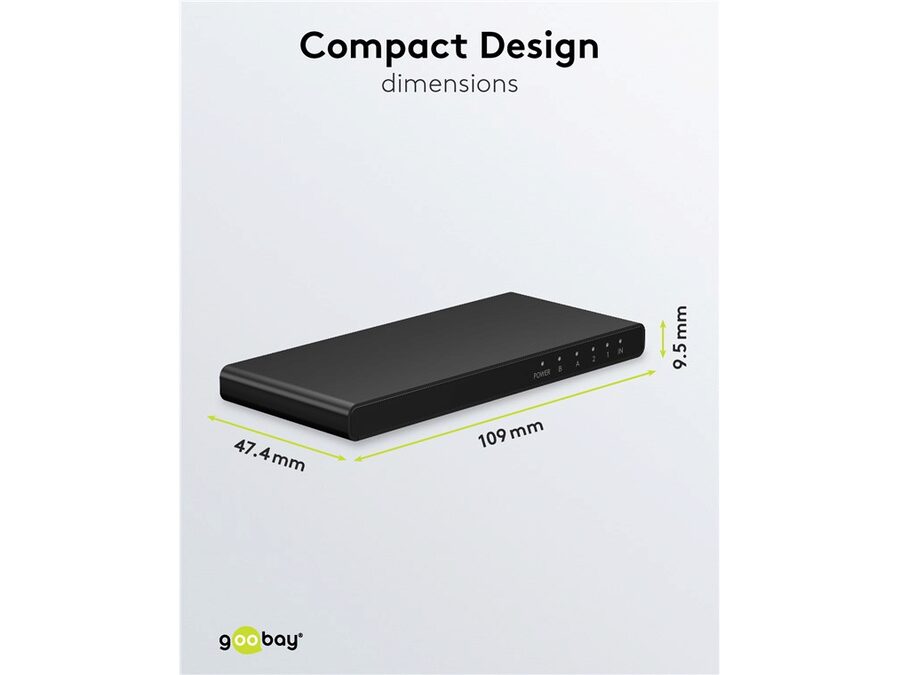

Størrelse/vægt:
- Længde: 109mm
- Bredde: 47,4mm
- Højde: 9,5mm
- Vægt: 71g
Leveringsomfang:
- Leveringsomfang: Manual, strømforsyning
Sprogomfang:
- Betjeningsvejledning: En, de, fr, it, es, nl, da, se, pl, cz

splits 1x HDMI input signal into 2x HDMI output signals

The HDMI splitter duplicates 1x HDMI input signal to up to 2x HDMI outputs such as TV set, monitor or projector.
The HDMI multi connector mirrors audio and video signals to the connected devices, e.g. for simultaneous projection in different rooms.
The HDMI splitter box 1x2 supports resolutions up to 4K @ 60 Hz (backward compatible).

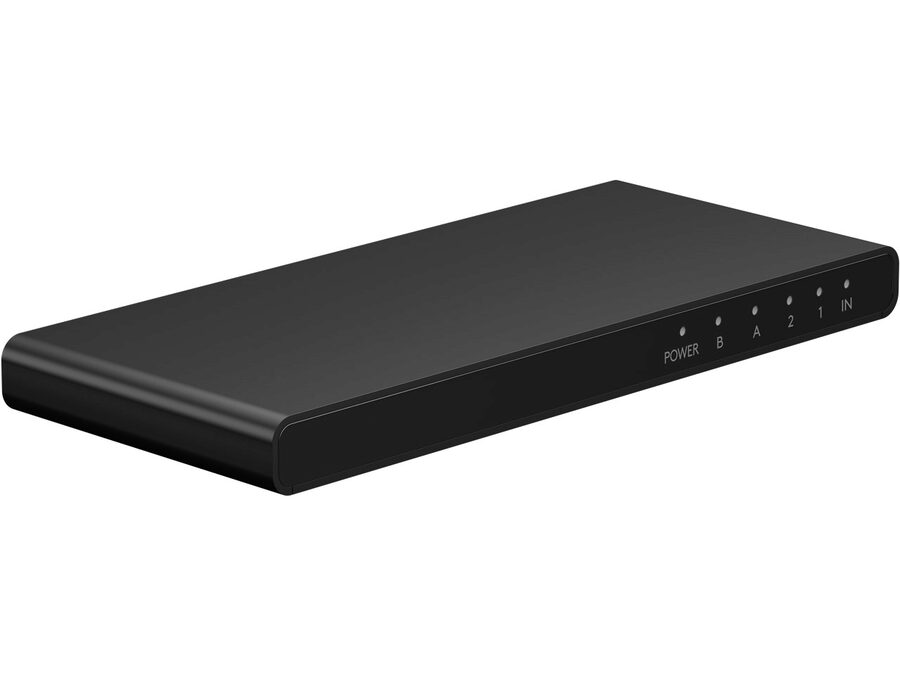

The LED display of the HDMI extender indicates which connections are activated.

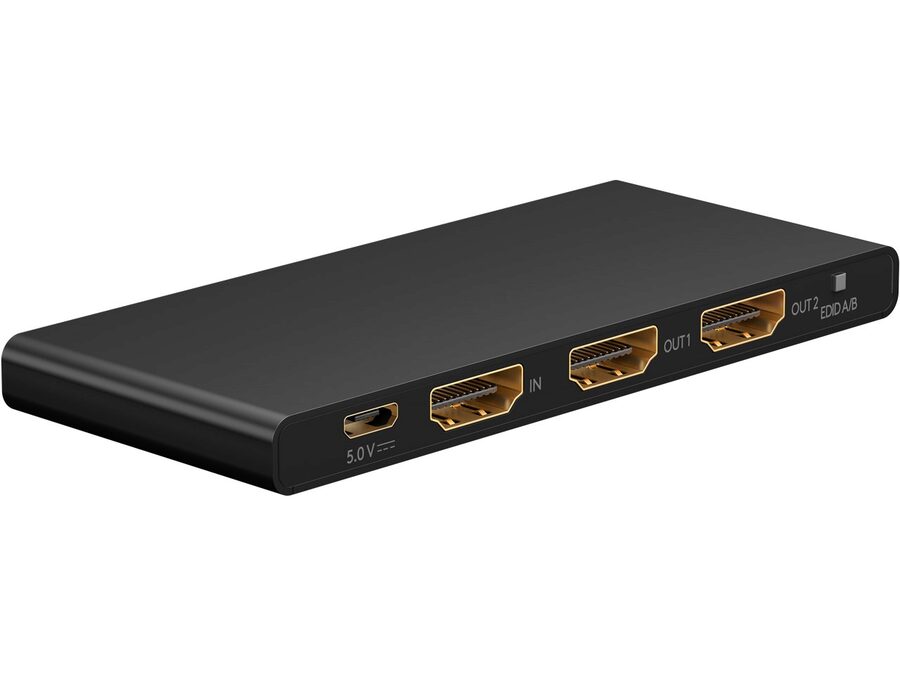

HDMI adapter 1 in 2 out in a flat design, equipped with heat-dissipating aluminium housing and gold-plated connectors.
Plug & Play allows for an easy connection without the need to install additional drivers.

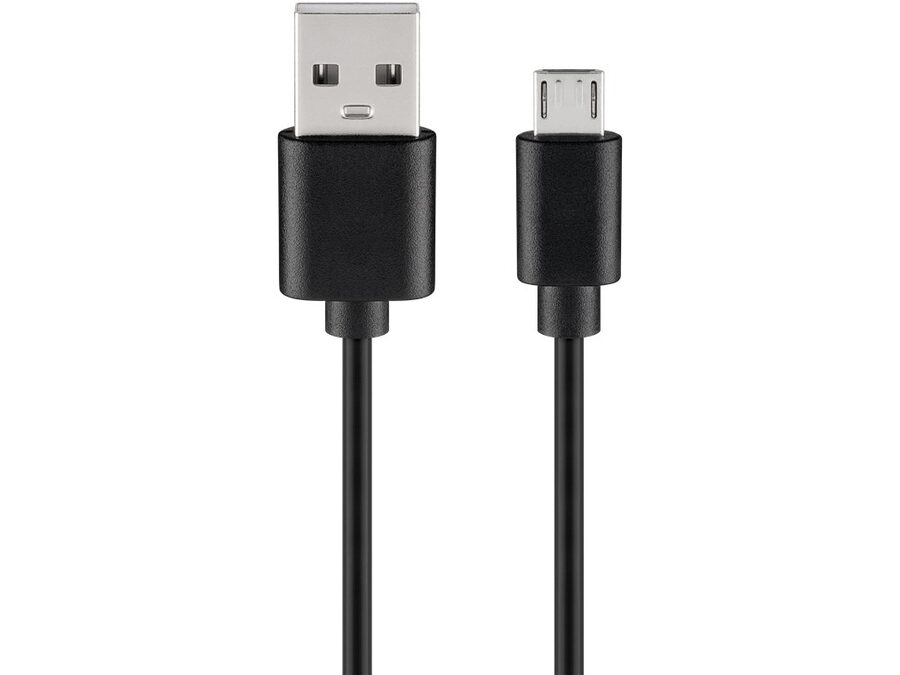

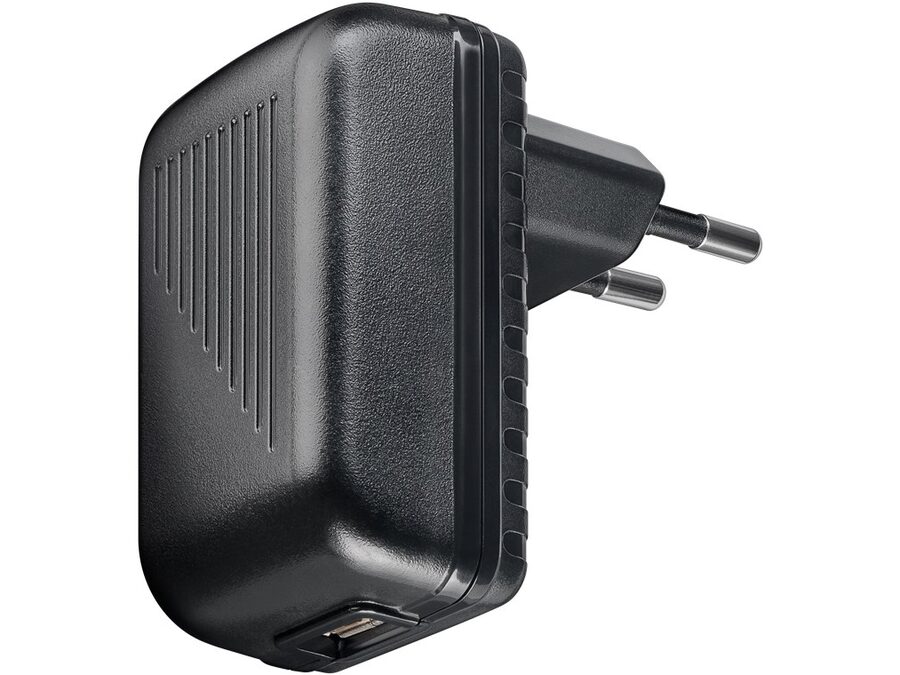

Powered via 5 V power supply unit and Micro-USB cable (both included in the scope of delivery).

Labelling:
- Disclaimer: All brand names are registered trademarks of their owners., The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress andthe HDMI Logos are trademarks or registered trademarks of HDMI LicensingAdministrator, Inc.
Connections:
- Connection, type: HDMI female (Type A)
- Connection type: HDMI female (Type A)

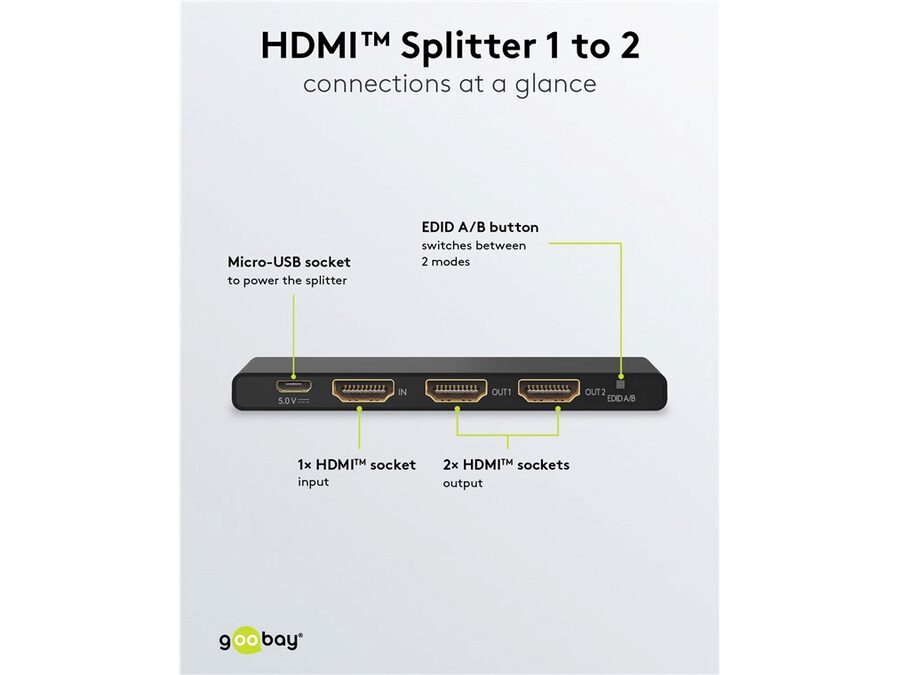

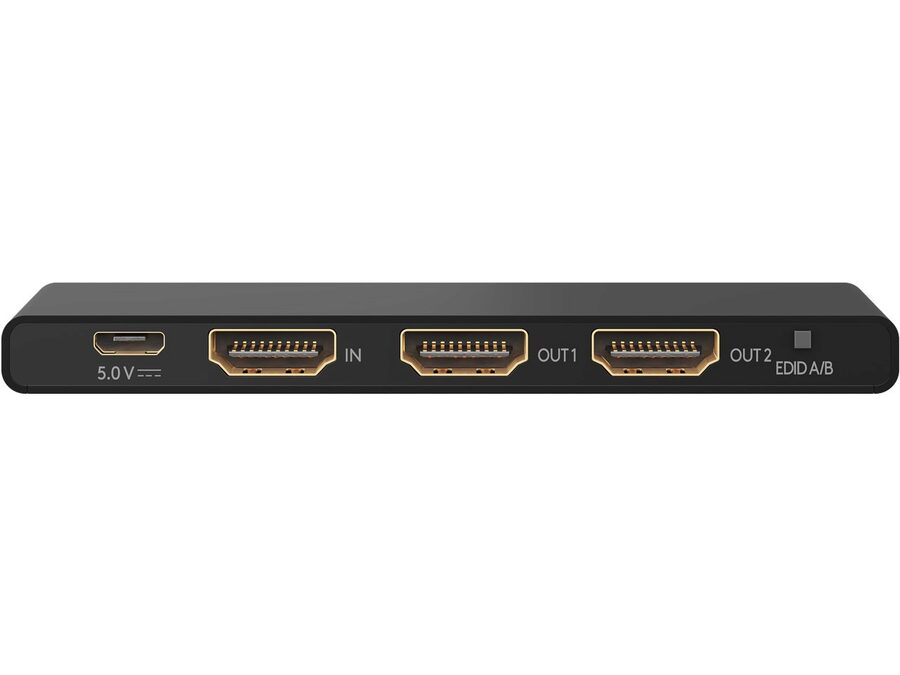

Device connections:
- Input, type: HDMI female (Type A) x in
- Output, type: 2x HDMI female (Type A)
Signal transmission:
- Max. transmission rate: 18 Gbit/s
- Other supported standards: HDCP 2.2, HDCP 1.4
- Supported video standards: 4K/60Hz (3840 x 2160) UHD, 4K/30Hz (3840 x 2160) UHD, Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D, HDCP 2.2
- Signal direction: Unidirektional
- Max. resolution: 4K/60Hz (3840 x 2160) UHD
- Supported audio standards: Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC)
General:
- Goobay Version: 2.0
- Color: Black
- Operating temperature: 0...40°C
Dimensions / Weight:
- Length: 109 mm
- Width: 47.4 mm
- Height: 9.5 mm
- Weight: 71 g
Scope of delivery:
- Scope of delivery: Manual, power supply
Language Scope:
- Operation manual: En, de, fr, it, es, nl, da, se, pl, cz
