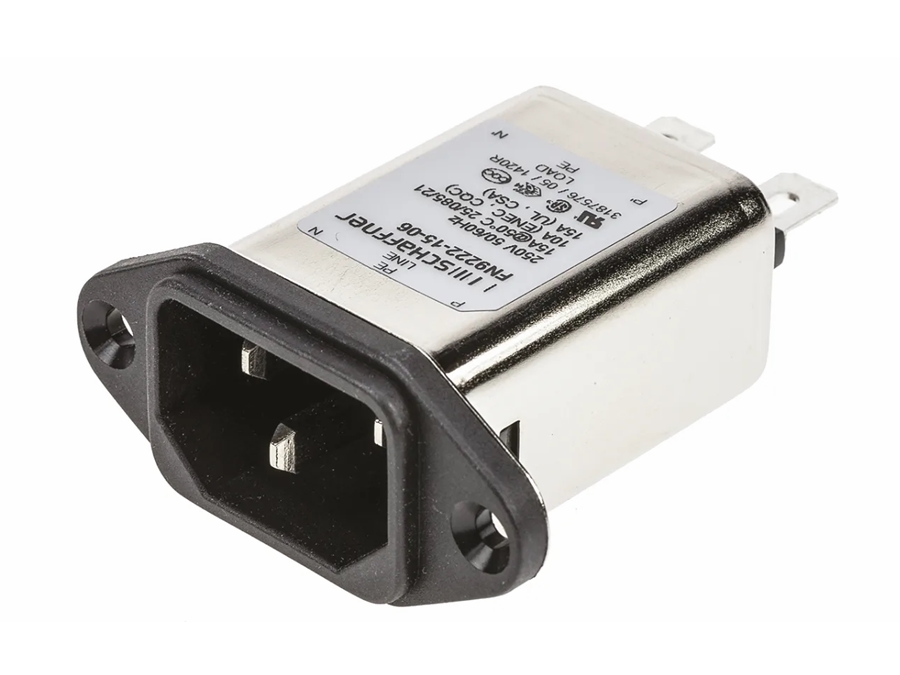

Apparatfatning m. EMI/EMC netfilter - C14, 250V 15A
Varenr:
H64539
EAN:
5705412645393
Tekniske detaljer:
- Producent (varemærke): SCHAFFNER
- Type stik: AC-forsyning
- Stikvariant: Fatning
- Køn: Han
- Strømstyrke: 15A
- Konnektorvariant: C14 (E)
- Mekanisk montage: Til panelmontering skrues
- Operationel temperatur: -25...85°C
- Ledninger: Stik 6,3x0,8mm
- Induktans: 75µH
- Kapacitans Cx: 0,1µF
- Kapacitans Cy: 2,2nF
- Konnektorserie: FN9222
- Lækstrøm: 0,31mA
- Nominel spænding: 250Vac
- Design: Filter
- Overensstemmende med normen: CSA 22.2 No. 8 1986IEC EN 60939UL 1283
- Bruttovægt: 36,9g
Specifications:
- Manufacturer: SCHAFFNER
- Type of connector: AC supply
- Connector: Socket
- Kind of connector: Male
- Current rating: 15A
- Connector variant: C14 (E)
- Mechanical mounting: For panel mounting, screw
- Operating temperature: -25...85°C
- Leads: Connectors 6,3x0,8mm
- Inductance: 75µH
- Capacitance Cx: 0.1µF
- Capacitance Cy: 2.2nF
- Connector series: FN9222
- Leakage current: 0.31mA
- Rated voltage: 250V AC
- Design: Filter
- Conform to the norm: CSA 22.2 No. 8 1986IEC EN 60939UL 1283
- Gross weight: 36.85 g
