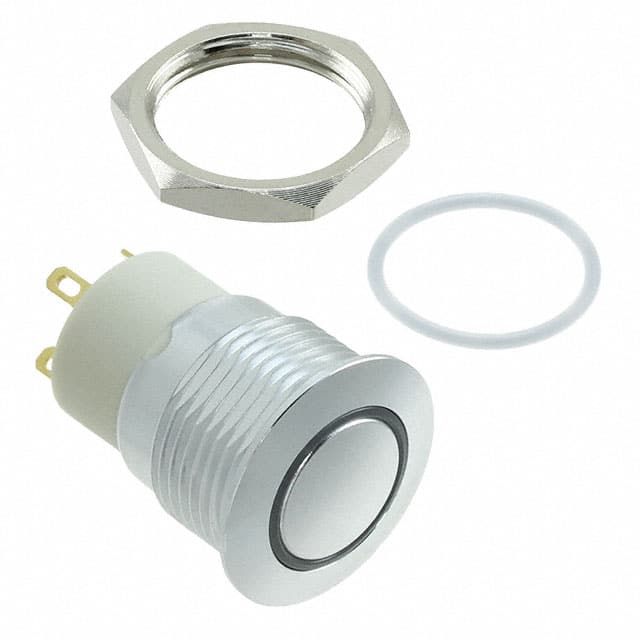

Vandalsikret alu.kontakt - 1P OFF-ON, Blå LED (IP67)
Varenr:
H64660
EAN:
5705412646604
Tekniske detaljer:
- Producent (varemærke): E-SWITCH
- Type afbryder: Vandal resistent
- Antal stillinger: 2
- Kontaktkonfiguration: SPST-NO
- DC kontaktstrøm (ved resistiv belastning): 2A / 36Vdc
- IP-rating: IP67
- Skiftemetode: OFF-ON
- Belysning: LED
- Baggrundslys farve: Blå
- Ledninger: Til lodning
- Elektrisk levetid: 100.000 cyklusser
- Maks. kontaktmodstand: 50 mOhm
- Driftskraft: 4,51N
- Mekanisk holdbarhed: 1000000 cyklusser
- Knapform: Konveks
- Monteringshul diameter: Ø16mm
- Husmateriale: Aluminium anodiseret
- Producentserie: PVA6
- Ringform: Afrundet
- Kontaktmateriale: Sølv
- Knapmateriale: Anodiseret aluminium
- Kontaktbelægning: Forgyldt
- Paneltykkelse: 1...6mm
- Montering: På panel
- Tasteslag: 2,3mm
- Operationel temperatur: -20...70°C
- Antal stabile positioner: 2
- Bruttovægt: 7,4g
Specifications:
- Manufacturer: E-SWITCH
- Type of switch: Vandal resistant
- Number of positions: 2
- Contacts configuration: SPST-NO
- DC contacts rating @R: 2A / 36V DC
- IP rating: IP67
- Switching method: OFF-ON
- Illumination: LED
- Backlight colour: Blue
- Leads: For soldering
- Electrical life: 100000 cycles
- Max. contact resistance: 50 mOhm
- Operating Force: 4.51N
- Mechanical durability: 1000000 cycles
- Button shape: Convex
- Mounting hole diameter: Ø16mm
- Body material: Aluminium anodised
- Manufacturer series: PVA6
- Ring shape: Rounded
- Contact material: Silver
- Button material: Anodised aluminium
- Contact plating: Gold-plated
- Panel thickness: 1...6mm
- Mounting: On panel
- Key stroke: 2.3mm
- Operating temperature: -20...70°C
- Stable positions number: 2
- Gross weight: 7.4 g
