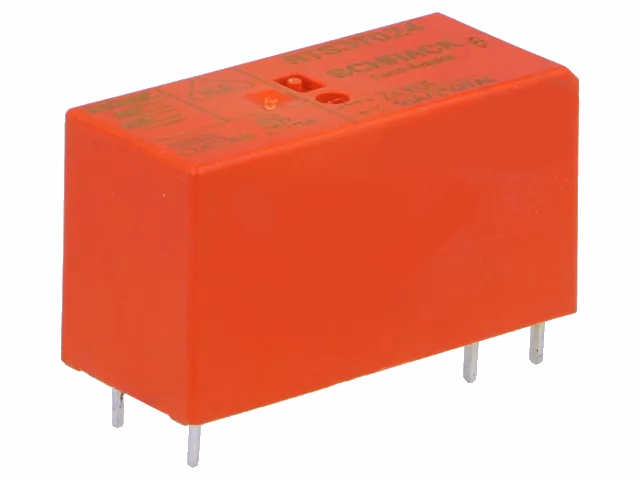

Miniature relæ - 24VDC 16A, 1 x slutte (SPST), 6-ben 5mm
Varenr:
H64971
EAN:
5705412649711
Relæ: elektromagnetisk; Kontaktkonfiguration: SPST-NO; Spolespænding: 24Vdc; Maks. kontaktstrøm: 16A.
Tekniske detaljer:
- Producent (varemærke): TE Connectivity
- Type relæ: elektromagnetisk
- Kontaktkonfiguration: SPST-NO
- Nominel spolespænding: 24Vdc
- Maks. kontaktstrøm: 16A
- AC kontaktstrøm (ved resistiv belastning): 16A / 250Vac
- DC kontaktstrøm (ved resistiv belastning): 16A / 24Vdc
- Relæserie: RTS
- Koblet spænding: maks. 300Vdc, maks. 400Vac
- Relævariant: indløb, miniature
- Montering: Printhul
- Spolemodstand: 1,44k?
- Spolespænding min.: 16,3Vdc
- Husstørrelse: 29x15,7x12,7mm
- Spolens strømforbrug: 400mW
- IP-rating: IP67
- Mekanisk holdbarhed: 5000000 cyklusser
- Operationel temperatur: -40...85°C
- Koblingskapacitet: 4kVA
- Kontaktmateriale: AgSnO 2 + W
- Terminalafstand: 5mm
- Højde: 15,7mm
- Antal ben: 6
- Maks. overspændingsstrøm: 165A
- Vægt: 13,56g
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A
Specifications:
- Manufacturer: TE Connectivity
- Type of relay: electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 24V DC
- Contact current max.: 16A
- AC contacts rating @R: 16A / 250V AC
- DC contacts rating @R: 16A / 24V DC
- Relay series: RTS
- Switched voltage: max. 300V DC
- Switched voltage: max. 400V AC
- Relay variant: inrush
- Relay variant: miniature
- Mounting: THT
- Coil resistance: 1.44k?
- Coil voltage min.: 16.3V DC

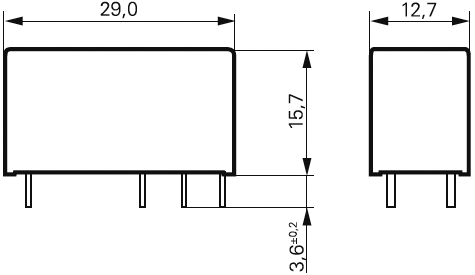

- Body dimensions: 29x15.7x12.7mm
- Coil power consumption: 400mW
- IP rating: IP67
- Mechanical durability: 5000000 cycles
- Operating temperature: -40...85°C
- Switching capacity: 4kVA
- Contact material: AgSnO2 + W
- Terminal pitch: 5mm
- Height: 15.7mm
- Number of pins: 6
- Max surge current: 165A
- Weight: 13.56g
