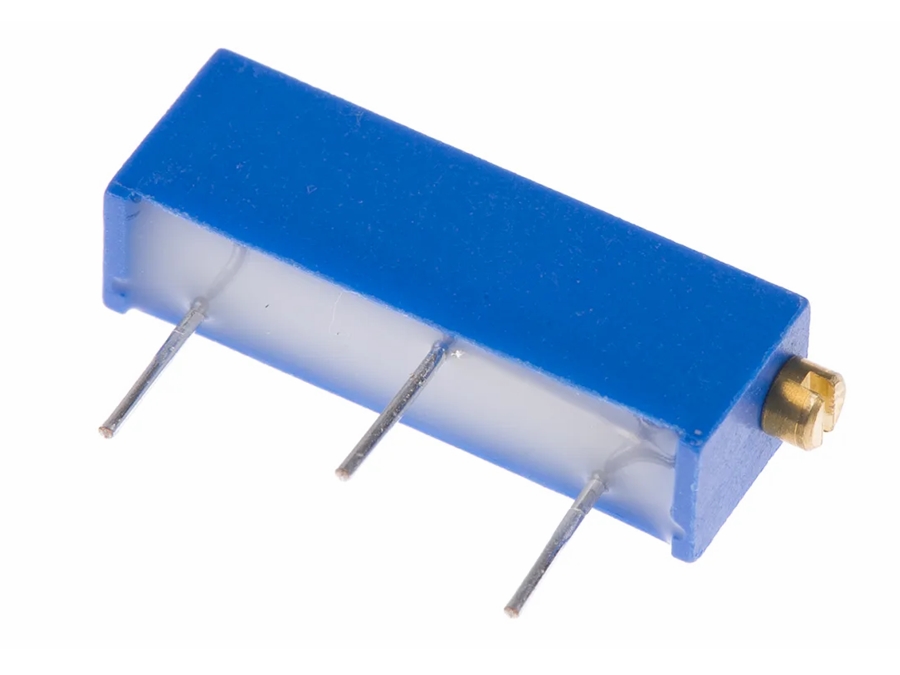

Multiturn trimmepotmeter - 500ohm, 19mm, 750mW, ±10% (CM)

Professionelle multiturn -trimmepotentiometre. Keramik modstandselementet tilbyder stabilitet og høj opløsning. Slutstop er markeret med et hørbart klik. Alle enheder har en blå plasthus, der tåler alle anerkendte printplade vaskeopløsningsmidler.

Tekniske detaljer:

• Producent (varemærke): VISHAY
• Type potentiometer: Montering
• En slags potentiometer: Multiturn
• Modstand: 500 Ohm
• Effekt: 750mW
• Antal elektriske omdrejninger: 15 ±1
• Tolerance: ±10%
• Karakteristika: Lineær
• Banemateriale: Keramik
• Montering: Printhul
• Operationel temperatur: -55...125°C
• Potentiometer standard: 19mm
• Temperaturkoefficient: 100ppm/° C
• Min. isolationsmodstand: 1000000000000 Ohm
• IP -klassificering: IP67
• Lignende modeller fra andre producenter: 43P, 89, 3006
• Størrelse:

Professional multiturn trimming potentiometers. The cermet resistance element offers stability og high resolution. The trimmer is actuated by a screw with a slipping clutch ved each end of travel. End stops are marked by an audible click. All units have a blå plastic case which withstands all recognised board washing solvents.

Specifications:

• Manufacturer: VISHAY
• Type of potentiometer: Mounting
• Kind of potentiometer: Multiturn
• Resistance: 500 Ohm
• Power: 750mW
• Number of electrical turns: 15 ±1
• Tolerance: ±10%
• Characteristics: Linear
• Track material: Cermet
• Mounting: THT
• Operating temperature: -55...125°C
• Potentiometer standard: 19mm
• Temperature coefficient: 100ppm/°C
• Min. insulation resistance: 1000000000000 Ohm
• IP rating
  : IP67
• Similar models from other manufacturers: 43P, 89, 3006
• Dimensions:
