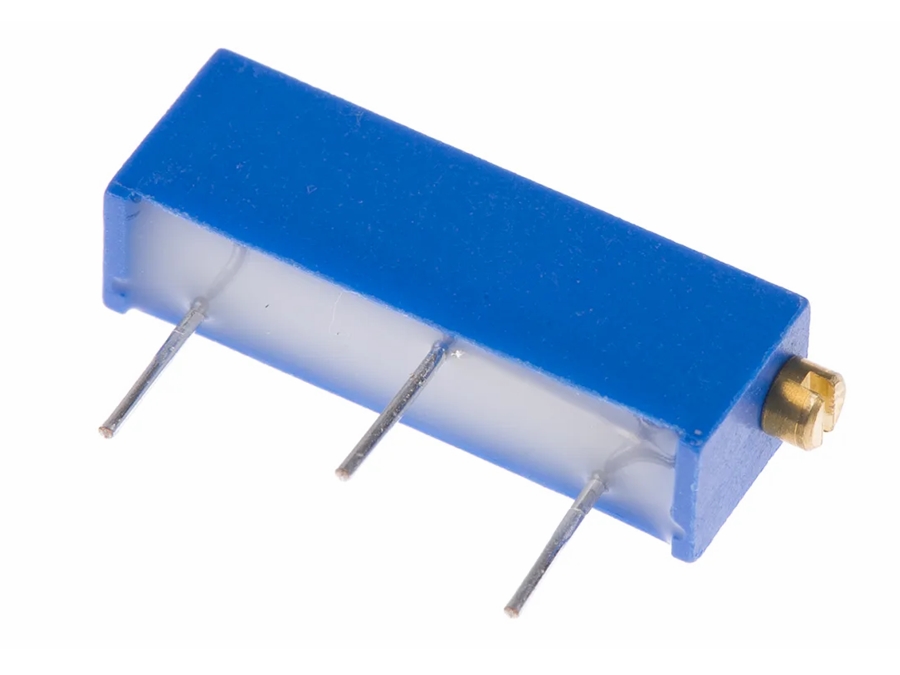

Multiturn trimmepotmeter - 47kOhm, 19mm
Varenr:
H13496
EAN:
5705412134965
Tekniske detaljer:
- Type potentiometer: Montering, Multiturn
- Modstand: 47 kOhm
- Effekt: 750mW
- Antal elektriske omdrejninger: 15
- Tolerance: ±10 %
- Karakteristika: Lineær
- Montering: Printhul
- Banemateriale: Keramik
- Operationel temperatur: -55...125°C
- Potentiometer standard: 19mm
- Temperaturkoefficient: 100ppm/°C
- Terminalafstand: 12,7x2,54mm
- Min. isolationsmodstand: 1000 MOhm
- Bruttovægt: 1,1g
Specifications:
- Type of potentiometer: Mounting
- Kind of potentiometer: Multiturn
- Resistance: 47 kOhm
- Power: 750mW
- Number of electrical turns: 15
- Tolerance: ±10%
- Characteristics: Linear
- Mounting: THT
- Track material: Cermet
- Operating temperature: -55...125°C
- Potentiometer standard: 19mm
- Temperature coefficient: 100ppm/°C
- Terminal pitch: 12.7x2.54mm
- Min. insulation resistance: 1000 MOhm
- Gross weight: 1.1 g
