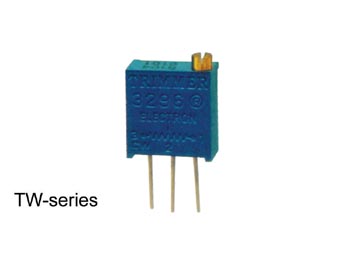

Multiturn trimmepotmeter - 10ohm lineær, 500mW, ±10% (TW)

Professional multiturn trimming potentiometers. The cermet resistance element offers stability og high resolution. The trimmer is actuated by a screw with a slipping clutch ved each end of travel. End stops are marked by an audible click. All units have a blå plastic case which withstands all recognised board washing solvents.

Egenskaber:

• MEC CITEC 4290W
• Vertikal montage
• Vertikal justering
• Ben layout: linje

Tekniske detaljer:

• Modstand: 10 ohm
• Maks. effekt: 0,5W ved 70°C
• Tolerance: ±10%
• Maks. spænidng: 300Vdc
• Rotation:
  • Elektrisk: 22 turns nom.
  • Mekanisk: 28 turns nom.
• Operationel temperatur: -55...125°C
• Benafstand: 2,5mm
• Størrelse: 10 x 9,5 x 4,8mm

Også kendt som: Cermet Multi-turn Trimmers (tw-series), 3296W, 64W, 67W, T93YA.
