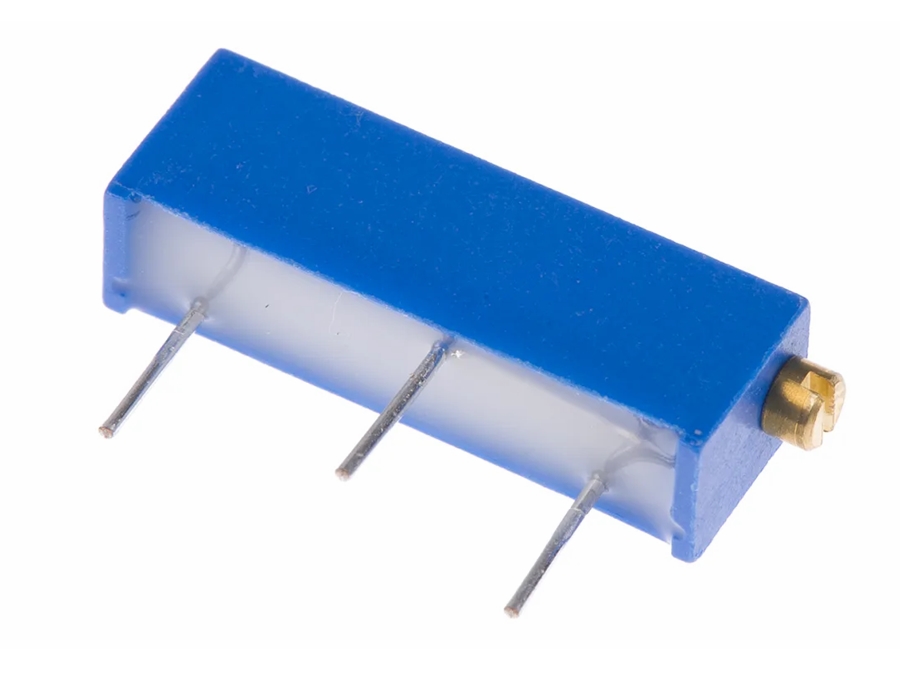

Multiturn trimmepotmeter - 20ohm, 19mm, 750mW, ±10%
Varenr:
H13510
EAN:
5705412135108
Tekniske detaljer:
- Producent (varemærke): BOURNS
- Type potentiometer: Til print
- Slags potentiometer: Multiturn
- Modstand: 20 Ohm
- Effekt: 0,75W
- Antal elektriske sving: 15
- Tolerance: ±10%
- Egenskaber: Lineær
- Spormateriale: Keramik
- Montering: Printhul
- Operationel temperatur: -55...125°C
- Potentiometer standard: 19mm
- Temperaturkoefficient: 100 ppm /° C
- Min. isolationsmodstand: 100 MOhm
- Benafstand: 17,8x2,54mm
- Husstørrelse: 19x9x4,9mm
Specifications:
- Manufacturer: BOURNS
- Type of potentiometer: Mounting
- Kind of potentiometer: Multiturn
- Resistance: 20 Ohm
- Power: 0,75W
- Number of electrical turns: 15
- Tolerance: ±10%
- Characteristics: Linear
- Track material: Cermet
- Mounting: THT
- Operating temperature: -55...125°C
- Potentiometer standard: 19mm
- Temperature coefficient: 100ppm/°C
- Min. insulation resistance: 100 MOhm
- Terminal pitch: 17,8x2,54mm
- Body dimensions: 19x9x4,9mm
