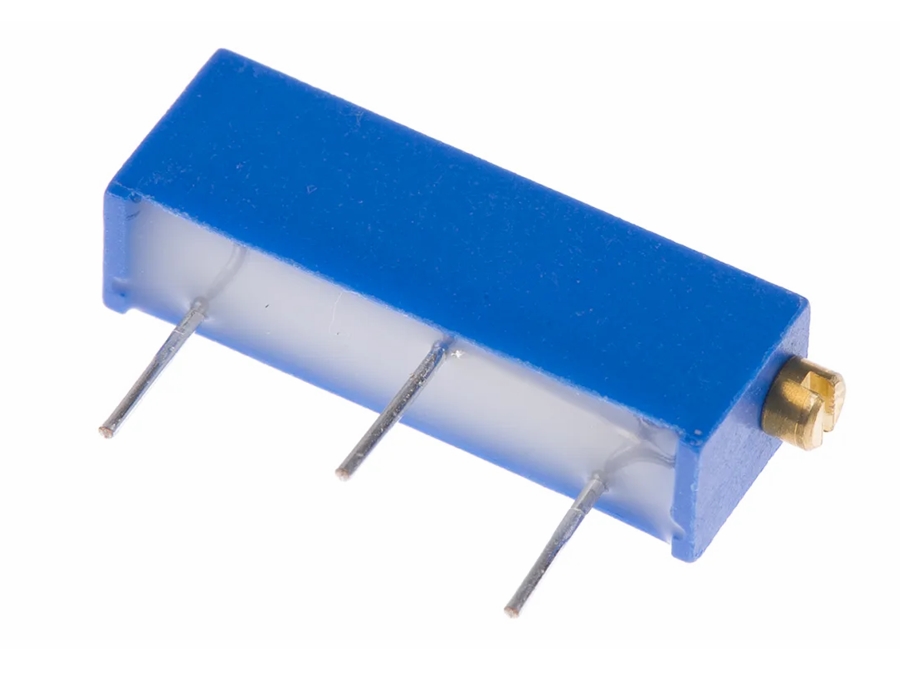

Multiturn trimmepotmeter - 50ohm, 19mm, 750mW, ±10% (CM)

Professional multiturn trimming potentiometers. The cermet resistance element offers stability og high resolution. The trimmer is actuated by a screw with a slipping clutch ved each end of travel. End stops are marked by an audible click. All units have a blå plastic case which withstands all recognised board washing solvents.

Egenskaber:

• MEC CITEC 443PW
• Horizontal mounting
• Horizontal adjustment
• Pin layout: triangle
• Range: 10E til 2M (E3 series)

Tekniske detaljer:

• Maks. effekt: 0.75W ved 70°C
• Tolerance: ±10%
• Working spænding: 400Vdc
• Rotation:
  • Electrical: 15 turns nom.
  • Mechanical: 18 turns nom.

Også kendt som: Cermet Multi-turn Trimmers (cm-series) (hor Mount / Hor Adj / Triangle)
