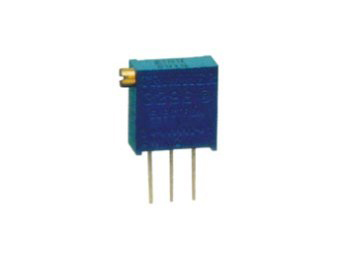

Multiturn trimmepotmeter - 1kOhm lineær, 500mW ±10% (TX)

Komponenttype: Potentiometer.

Professionelle multiturn-trimningspotentiometre. Keramik-modstandselementet tilbyder stabilitet og høj opløsning. Trimmeren aktiveres af en skrue med en glidende kobling ved hver ende af kørslen. Slutstop markeres med et hørbart klik. Alle enheder har en blå plastkasse, der tåler alle anerkendte vaskeopløsningsmidler til tavler.

Tekniske detaljer:

• Producent (varemærke): SR PASSIVES
• Type potentiometer: Multiturn
• Modstand: 1 kOhm
• Effekt: 500 mW
• Tolerance: ±10%
• Egenskaber: lineær
• Montering: Printhul
• Spormateriale: Keramik
• Operationel temperatur: -55...125°C
• Potentiometer standard: 3/8"
• Temperaturkoefficient: 100 ppm/°C
• Husstørrelse: 10x9,5x4,8mm
• Benafstand: 2,5mm
• Antal mekaniske drejninger: 28
• Lignende modeller fra andre producenter: 3296X, 64W, 67W, T93XA
• Kontrol: Vandret
• Mekanisk holdbarhed: 200 cykler

Professional multiturn trimming potentiometers. The cermet resistance element offers stability og high resolution. The trimmer is actuated by a screw with a slipping clutch ved each end of travel. End stops are marked by an audible click. All units have a blå plastic case which withstands all recognised board washing solvents.

Specifications:

• Manufacturer: SR PASSIVES
• Kind of potentiometer: Multiturn
• Resistance: 1k?
• Power: 500mW
• Tolerance: ±10%
• Characteristics: linear
• Mounting: THT
• Track material: Cermet
• Operating temperature: -55...125°C
• Potentiometer standard: 3/8"
• Temperature coefficient: 100ppm/°C
• Body dimensions: 10 x 9,5 x 4.8mm
• Terminal pitch: 2,5mm
• Number of mechanical turns: 28
• Similar models from other manufacturers: 3296X, 64W, 67W, T93XA
• Control: horizontal
• Mechanical durability: 200cycles
