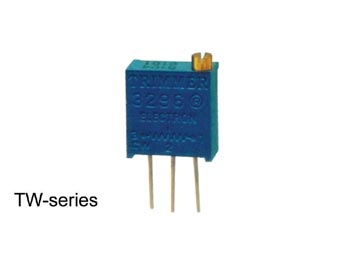

Multiturn trimmepotmeter - 20kOhm lineær, 500mW, ±10% (TW)

Professional multiturn trimming potentiometers. The cermet resistance element offers stability og high resolution. The trimmer is actuated by a screw with a slipping clutch ved each end of travel. End stops are marked by an audible click. All units have a blå plastic case which withstands all recognised board washing solvents.

Egenskaber:

• MEC CITEC 4290W
• Vertical mounting
• Vertical adjustment
• Pin layout: line
• Range: 10E til 5M (E3 series)

Tekniske detaljer:

• Maks. effekt: 0.5W ved 70°C
• Tolerance: ±10%
• Working spænding: 300Vdc maks.
• Rotation:
  • Electrical: 22 turns nom.
  • Mechanical: 25 turns nom.

  Også kendt som: Cermet Multi-turn Trimmers (tw-series) (vert Mount / Vert Adj / Line)
