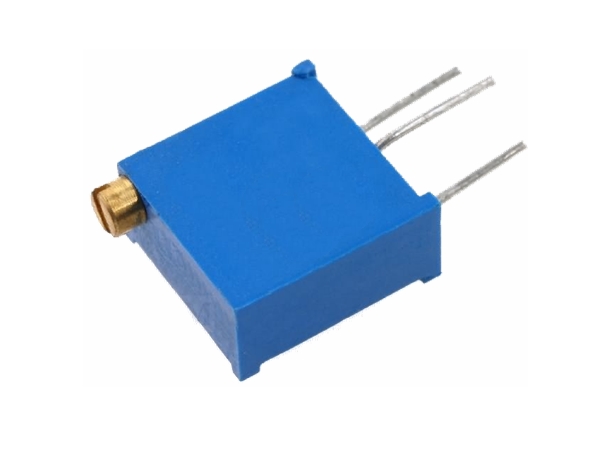

Multiturn trimmepotmeter - 50kOhm, 500mW, ±10% (YB)

Varenr: H13640
EAN: 5410329292584
https://el-grossisten.dk/web/image/product.template/26028/image_1920?unique=1c61f5f
Komponenttype: Potentiometer.

Professional multiturn trimming potentiometers. The cermet resistance element offers stability og high resolution. The trimmer is actuated by a screw with a slipping clutch ved each end of travel. End stops are marked by an audible click. All units have a blå plastic case which withstands all recognised board washing solvents.

Egenskaber:

  • MEC CITEC 4290Y
  • Vertical mounting
  • Vertical adjustment
  • Pin layout: triangle
  • Range: 100E til 1M (E3 series)

Tekniske detaljer:

  • Maks. effekt: 0.5W ved 70°C
  • Tolerance: ±10%
  • Working spænding: 300Vdc maks.
  • Rotation:
    • Electrical: 22 turns nom.
    • Mechanical: 25 turns nom.
    Også kendt som: Cermet Multi-turn Trimmers (ty-series) (vert Mount / Vert Adj / Triangle)
Læs mere

DKK 30,00 30.0 DKK DKK 30,00 Moms Inkluderet DKK 37,50

DKK 30,00 Moms Inkluderet DKK 37,50

Not Available For Sale

Denne kombination eksistere ikke.

0.0 Stk på lager
2 Stk på fjernlager - Forventet levering om ca. 1-3 dage
