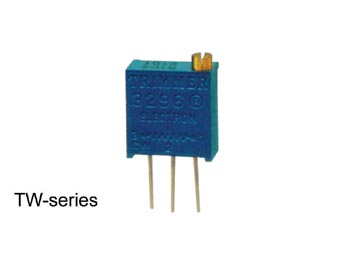

Multiturn trimmepotmeter - 50ohm lineær, 500mW, ±10% (TW)
Varenr:
H34540
EAN:
5705412345408
Tekniske detaljer:
- Producent (varemærke): SR PASSIVES
- Type potentiometer: Multiturn trimmer
- Modstand: 50 Ohm
- Effekt: 500 mW
- Montering: Printhul
- Tolerance: ±10%
- Egenskaber: Lineær
- Spormateriale: Keramik
- Operationel temperatur: -55...125°C
- Potentiometer standard: 3/8"
- Temperaturkoefficient: 200 ppm/°C
- Husstørrelse: 10x9,5x4,8mm
- Benafstand: 2,5mm
- Antal mekaniske omdrejninger: 28
- Lignende modeller fra andre producenter: 3296W, 64W, 67W, T93YA
- Kontrol: Lodret
- Mekanisk holdbarhed: 200 cykler
Specifications:
- Manufacturer: SR PASSIVES
- Kind of potentiometer: Multiturn trimmer
- Resistance: 50 Ohm
- Power: 500mW
- Mounting: THT
- Tolerance: ±10%
- Characteristics: Linear
- Track material: Cermet
- Operating temperature: -55...125°C
- Potentiometer standard: 3/8"
- Temperature coefficient: 200ppm/°C
- Body dimensions: 10x9.5x4.8mm
- Terminal pitch: 2.5mm
- Number of mechanical turns: 28
- Similar models from other manufacturers: 3296W, 64W, 67W, T93YA
- Control: Vertical
- Mechanical durability: 200 cycles
