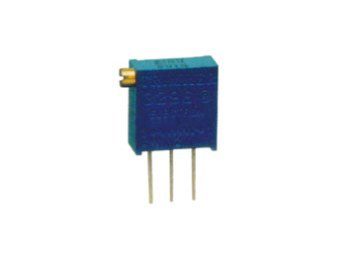

Multiturn trimmepotmeter - 5kOhm lineær, 500mW ±10% (TX)
Varenr:
H34550
EAN:
5705412345507
Tekniske detaljer:
- Producent (varemærke): SR PASSIVES
- Slags potentiometer: Multiturn
- Modstand: 5 kOhm
- Effekt: 500 mW
- Montering: Printhul
- Tolerance: ±10%
- Karakteristika: Lineær
- Spormateriale: Keramik
- Operationel temperatur: -55...125°C
- Potentiometer standard: 3/8"
- Temperaturkoefficient: 100 ppm/°C
- Husstørrelse: 10x9,5x4,8mm
- Benafstand: 2,5mm
- Antal mekaniske omdrejninger: 28
- Lignende modeller fra andre producenter: 3296X, 64W, 67W, T93XA
- Kontrol: Vandret
- Mekanisk holdbarhed: 200 cyklusser
Specifications:
- Manufacturer: SR PASSIVES
- Kind of potentiometer: Multiturn
- Resistance: 5 kΩ
- Power: 500mW
- Mounting: THT
- Tolerance: ±10%
- Characteristics: Linear
- Track material: Cermet
- Operating temperature: -55...125°C
- Potentiometer standard: 3/8"
- Temperature coefficient: 100ppm/°C
- Body dimensions: 10x9,5x4,8mm
- Terminal pitch: 2,5mm
- Number of mechanical turns: 28
- Similar models from other manufacturers: 3296X, 64W, 67W, T93XA
- Control: Horizontal
- Mechanical durability: 200 cycles
