Motoriseret Kugleventil - 3/4" (DN20), NC, åbner v. 12-24Vdc
Varenr:
H36310
EAN:
5705412363105
3/4" NC (Normalt lukket) 12Vdc 2-leder elektrisk kugleventil af messing til vand/olie/væske. Erstatter magnetventiler, med den fordel at denne type ventil ikke har minimumskrav til væsketryk og i øvrigt understøtter tovejs flow.
Kontakt os gerne, hvis du har brug for denne ventil i andre versioner (24Vdc/230Vac, NO/NC, DN15/25/32/40/50).
Tekniske detaljer:
- Ventilhus materiale: Messing
- Spænding: 12Vdc

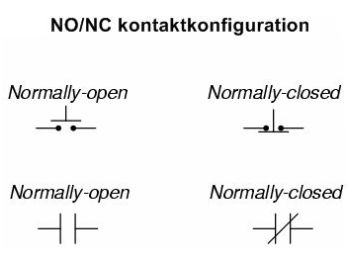

- Arbejdsform: NC (normalt lukket)
- Gevind: 3/4" (DN20), Ø25mm
- Kuglediameter: Ø17mm
- Strømforbrug: 6VA
- Ventil-legemetrykmodstand: 1,6mpa
- Åbning- og lukketid: 15 sek.
- Ledere: 2
- Blå: +
- Gul: -
- Medier: Varmt/koldt vand, olie, 50% ethylenglycolopløsning
- Medie temperatur: 0-90°C
3/4" Normally Closed 12Vdc 2-Wire Brass Electric Ball Valve for Water/Oil/Liquid. Replaces Solenoid Valves, with the advantage that this type of valve has no lower liquid pressure requirements and supports bi-directional flow.
Pls. contact us if you need this valve in other versions (24Vdc/230Vac, NO/NC, DN15/25/32/40/50).
Specifications:
- Valve body material: Brass
- Voltage: 12Vdc
- Working form: NC (normally cloced)
- Thread: 3/4" (DN20), Ø25mm
- Ball diameter: Ø17mm
- Power consumption: 6VA
- Valve body pressure resistance: 1.6mpa
- Opening and closing time: 15s
- Wires: 2
- Blue: +
- Yellow: -
- Medium: Hot/cold water, Oil, 50% Ethylene glycol solution
- Medium temperature: 0-90°C
