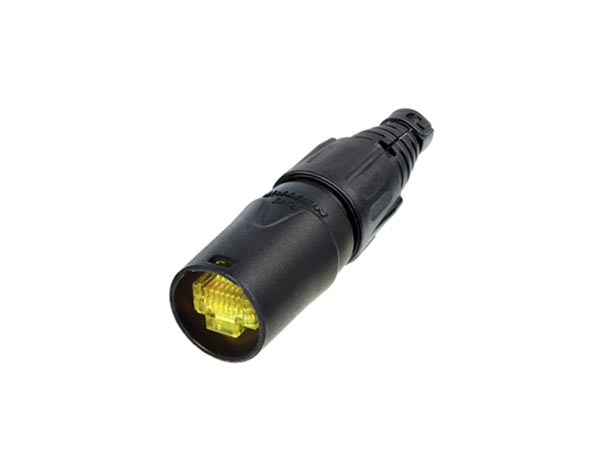

Neutrik - EtherCon® RJ45 kabelhus m. bøsning og krave, Sort
Varenr:
H55433
EAN:
5410329711726
RJ45 kabelhus for færdigsamlede UTP / FTP kabler med RJ45-stik. Huset består af krave, fikseringsskive, lås og bøsning. Pakket med to kabelkraver til kabel diameter op til 8 mm. Kabelhus inkluderer ikke et RJ45-stik.
EtherCON-kabelhus opgraderer et konventionelt RJ45-stik til en ekstremt robust aflåselig løsning.
Egenskaber:
- RJ45-systemet til barske og krævende omgivelser
- Robust formstøbt skal og unik belastning af chucktype
- O-ring pakning for at opnå IP54 vandbeskyttelse i kombination med SE8FD tætningssæt
- Kabelhus accepterer de mest almindelige RJ45-stik
- Beskytter Ethernet-forbindelser i en række kommercielle applikationer og er designet til at forhindre brud på de skrøbelige komponenter i standard RJ 45-stik
- Tilbehør inkluderer farvekodede støvler i 9 standardfarver
Tekniske detaljer:
- Mekanisk:
- Maks. Kablets udvendige diameter: 8mm 0,315 '
- Indsættelseskraft: = 20 N
- Tiltrækningskraft: = 20 N
- Levetid:> 1000 parringscyklusser
- Materiale:
- Boot: Polyamid (PA 6)
- Shell: Zink-diecast (ZnAl4Cu1)
- Shell plating: sort krom
- Stammehjælp: Polyacetal (POM)
- Miljø:
- Operationel temperatur: -30°C til +80°C
RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features:
- The RJ45 system for harsh and demanding environment
- Rugged die cast shell and unique chuck type strain relief
- O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit
- Cable connector carrier accepts the most common RJ45 plugs
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
- Accessories include colour coded boots in 9 standard colours
Specifications:
- Mechanical:
- Cable outside diameter: Max. 8 mm 0.315'
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Lifetime: > 1000 mating cycles
- Material:
- Boot: Polyamide (PA 6)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Strain relief: Polyacetal (POM)
- Environmental:
- Temperature range: -30 °C to +80 °C
