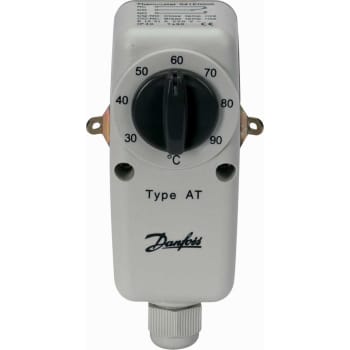

AT anlægstermostat, 30-90°C, diff. 6-10°C

Anlægstermostat AT er en 1-polet påspændingstermostat med omskifterkontakt. AT monteres direkte uden på røret. The AT pipe thermostat is used to regulate the medium temperature in the pipe on which the thermostat is mounted. AT senses the temperature in the pipe through its contact surface and is therefore suitable to control boiler or flow temperature in central heating systems. The AT pipe thermostat comprises a bimetallic sensor, a contact system and a setting knob. On connection to terminals CO and NC the thermostat breaks on a rise in temperature. On connection to terminals CO and NO the thermostat close on a rise in temperature. The AT thermostat can be mounted on the pipe without emptying the plant of water. The AT thermostats are mounted directly on a pipe with the steel band provided, suitable for pipe sizes G ½ to 3. A tube containing heat-conductive compound is supplied with the thermostat. The compound has very good heat conducting properties and should be applied between the thermostat contact surface and the pipe.
