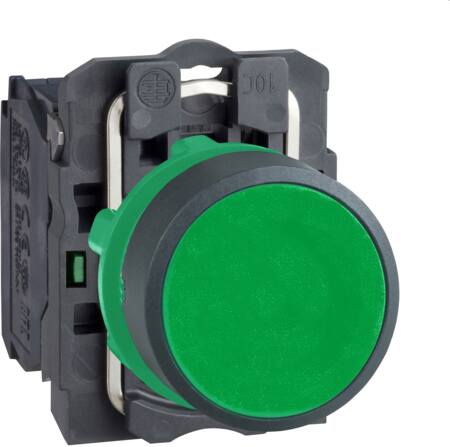

TRYK PLAN GRØN XB5AA31

Pushbuttons, rotary and key handles Harmony Style 5 (Series XB5) in plastic with a diameter of 22 mm are a series of complete units, including toadstools in black with a diameter of 40 mm. The pushbutton program refers to the series of pushbuttons, signal lamps and lamp presses with a plastic front ring. The series type numbers start with XB5 and replace the older Ø22 mm XA2-B series.

Signal lamps and lamp buttons in this series use Protected LED technology, which ensures up to 100,000 hours of maintenance-free operation. The advantages of the new LED light sources include minimal maintenance, no need for lamp testing, a full color range (including blue and white) and a wide voltage range with uniform light intensity at both 12 V and 230 V.

Connection of the units can be done with screws with locking washers, plug-in connectors or pins for PCB mounting. The series also supports accessories such as hour counters (0 to 9999.9 hours), sounders (80 dB) and fuse holders for 5x20 mm fuses.

Features:

• Protected LED technology with up to 100,000 hours of maintenance-free operation
• Minimal maintenance and no need for lamp testing
• Uniform light intensity over a wide voltage range (12 V and 230 V)
• Flexible connection options: screws with locking washer, connectors or PCB pins
• Compatible with design software for individual sign design

Specifications:

• Design and material:
  • With front ring: Yes
  • Front ring color: Black
  • Front ring material: Plastic
  • Push button type: Flat
• Contacts and electrical specifications:
  • Number of break contacts: 0 (0)
  • Number of make contacts: 1
  • Number of changeover contacts: 0 (0)
  • Suitable for lighting: No
• Protection class:
  • Degree of protection (NEMA): 4X
  • Protection class (IP): IP66
