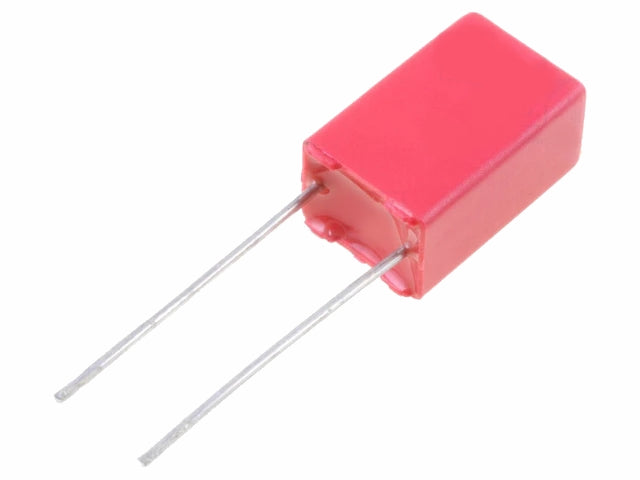

MKS2 polyester kondensator - 220nF (0,22uF) 63V 5mm

WIMA kondensatorer har pålidelige interne t. De bruger et simpelt koncept: ledningen kommer i elektrisk kontakt med hele overfladen af elektroden, hvilket sikrer minimal induktans. Dette resulterer i kondensatorer med god dæmpning og selvresonans Miniatur-type kondensatorer med 5mm terminalhældning. Metalliseret polyesterfilm.

Tekniske detaljer:

• Producent (varemærke): WIMA
• Kondensatortype: Polyesterfilm
• Kondensatorapplikation: blokering, DC-applikationer, afkobling, filtrering, timing kredsløb
• Kapacitet: 220nF
• Benafstand: 5mm
• Tolerance: ±10%
• Husstørrelse: 3x7,5x7,2mm
• Klimaklasse: 55/100/21
• Benlængde: 6mm
• Operationel temperatur: -55...100°C
• Kondensatorserie: MKT
• Kapslingsmateriale: selvslukkende, UL94V-0
• Pulsmodstand: 15V/µs
• Montering: Printhul
• Maks. driftsspænding: 40Vac, 63Vdc

WIMA capacitors have reliable internal end terminations. They use a simple concept: the wire makes electrical contact with the complete surface of the electrode, which ensures minimal inductance. This results in capacitors with a good attenuation og self-resonance Miniature-type capacitors with 5mm terminal pitch. Metallised polyester film.

Specifications:

• Manufacturer: WIMA
• Type of capacitor: Polyester film
• Capacitor application: blocking, DC applications, decoupling, filtering, timing circuits
• Capacitance: 220nF
• Terminal pitch: 5mm
• Tolerance: ±10%
• Body dimensions: 3x7.5x7.2mm
• Climate class: 55/100/21
• Leads dimensions: len. 6mm
• Operating temperature: -55...100°C
• Capacitors series: MKT
• Enclosure material: self-extinguishing, UL94V-0
• Pulse resistance: 15V/µs
• Mounting: THT
• Max. operating voltage: 40V AC, 63V DC
