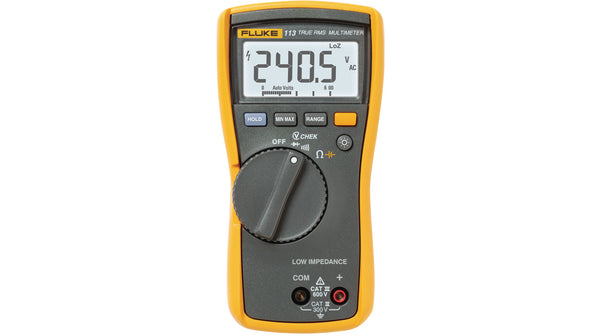

FLUKE 113 - Multimeter, Sand RMS AC, 600VAC/DC

Demo video

Funktionsbeskrivelse

Fluke 110-serien består af fem sand RMS DMM’er; alle til bestemte brugere. De kompakte instrumenter er nemme at betjene med én hånd og har et baggrundsbelyst display med store, let læselige cifre. Fluke 113 er til grundlæggende elektrisk test og reparation af de fleste elektriske problemer. Funktionerne omfatter Flukes VCHEK™, tilføjede målefunktioner, baggrundsbelysning og overensstemmelse med de seneste sikkerhedsstandarder.

Egenskaber:

• VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity
• True-rms for accurate ac measurements on non-linear loads
• A large backlit display allows for easy visibility in low-lit areas
• Record signal fluctuations using the Min/Max function
• Diode test for testing general-purpose germanium, silicon, and power diodes
• Integral holster with probe holders for easy storage
• Auto and Manual ranging for added user functionality
• Meets Measurement Category CAT III 600 V and Category IV 300 V standards for a higher level of safety
• The optional TPAK magnetic hanger allows the user hands-free flexibility

Tekniske detaljer:

• Producent: FLUKE
• Meter type: Digital multimeter
• Type of display used: LCD 3,75 digit (6000)
• DC voltage measuring range: 1m...6/60/600V
• DC voltage measuring accuracy: ±(0,5% + 2 digits)
• True effective value measurement: True RMS AC
• Resistance measuring range: 0,1...600/6k/60kOhm
• Resistance measuring accuracy: ±(0,9% + 2 digits)
• Capacitance measuring range: 1n...1000n/10µ/100µ/9999µF
• Capacitance measuring accuracy: ±(1,9% + 2 digits)
• Diode test: 1,2mA, 2,7V
• Continuity test: acoustic signal for R<20 Ohm
• Pollution degree: 2
• Overall dimensions (W x D x H): 84 x 46 x 167mm
• Weight with battery: 404g
• Power supply: 1 battery 9V 6F22
• Measurement: DC voltage, capacitance, resistance
• Conform to the norm: EN61010 600V CAT III
