4 relæ shield til Arduino Uno

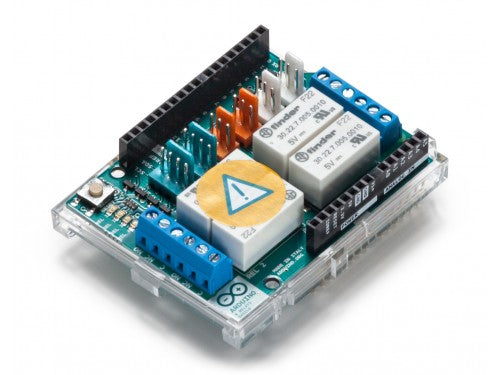

Arduino 4 Relæ Shield er en løsning til at drive høje effektbelastninger, som ikke kan kontrolleres af Arduinos digitale IO'er på grund af controllerens strøm- og spændingsgrænser. Dette shield har fire relæer, hvert relæ giver 2-polede skiftekontakter (NO og NC); For at øge strømgrænsen for hver udgang er de 2 skiftekontakter sat parallelt. Fire LED'er angiver tænd/sluk-tilstanden for hvert relæ.

Via dette link: Kom godt i gang finder du den information, du har brug for for at konfigurere dit board. Brug Arduino-softwaren (IDE) til din kodning. Brug for hjælp? så tjek Arduion Forum

Tekniske detaljer:

• Thinker Kit interface: 2x TWI, 2x OUT, 2x IN
• Grænseflader med Arduino Board: DIO
• Relæer: 4 (60W) generelt
• Driftsspænding: 5 V
• Relæ strømforbrug: 140mA (med alle relæer tændt, ca. 35mA hver)
• Enkeltpolet opladningskontakt maks. strøm: 2A ved 30Vdc
• Maksimal belastningsspænding: 48 V
• Maksimal koblingskapacitet: 60 W
• Størrelse: 53 x 68,5mm
• Vægt: 44g

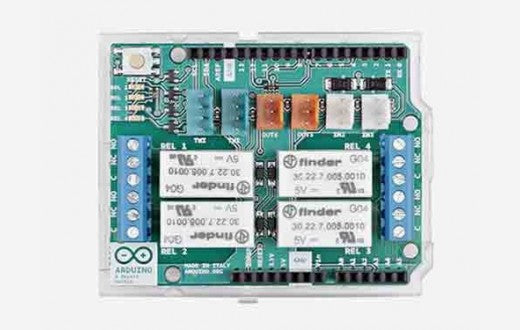

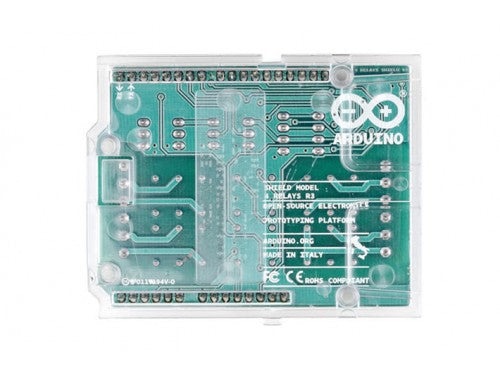

The Arduino 4 Relays Shield is a solution for driving high power loads that cannot be controlled by Arduino's digital IOs, due to the current and voltage limits of the controller. The Shield features four relays, each relay provides 2 pole changeover contacts (NO and NC); in order to increase the current limit of each output the 2 changeover contacts have been put in parallel. Four LEDs indicate the on/off state of each relay.

You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics. Need help? then check out the Arduion Forum

Specifications:

• Thinker Kit interface: 2x TWI, 2x OUT, 2x IN
• Interfaces with Arduino Board: DIO
• Relays: 4 (60W) General
• Operating Voltage: 5 V
• Relay coil current consumption: 140 mA (with all releays on, about 35 mA each)
• Single pole chargeover contact maximum current: 2A @ 30VDC
• Maximum load voltage: 48 V
• Maximum switching capacity: 60 W
• PCB dimensions: 53 x 68.5 mm
• Weight: 44 g
