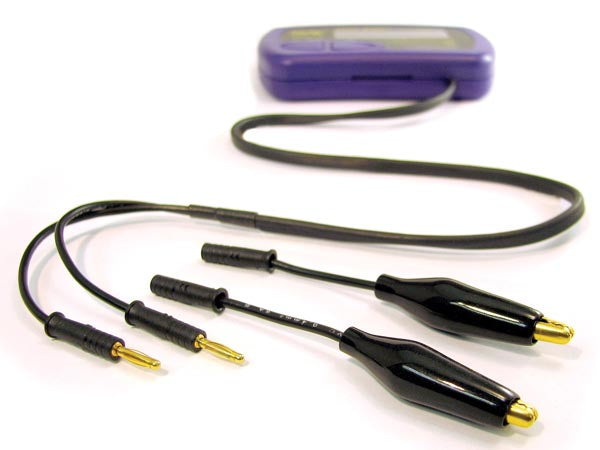

PEAK - ESR70 kondensatortester

Egenskaber:

• ESR measurement område 0 to 20 Ohm
• ESR resolution as low as 0.01 Ohm
• Capacitance område 1µF…22mF (22,000µF)
• Can also be used for low-Ohms resistance checking
• Built-in protection circuitry means risk of damage to the unit due to residual charge is greatly reduced
• Integrated controlled discharge circuitry reduces the need for the user to manually discharge capacitors before test
• Use in or out of circuit for ESR measurement
• Automatic and manual power-off

Tekniske detaljer:

• Peak test current into S/C: ±20mA ~ ±25mA
• Peak test voltage across O/C: ±2.5V ~ ±3.0V
• Capacitance measurement range: 1µF ~ 22,000µF
• Capacitance accuracy: ±4%±0,2µF
• ESR:
  • Measurement range: 0 Ohm ~ 20 Ohm
  • Resolution (ESR<2 Ohm): 0.01 Ohm ~ 0.02 Ohm
  • Resolution (ESR>2 Ohm): 0.1 Ohm ~ 0,2Ohm
  • Accuracy (ESR<2 Ohm): ±1.5% ±0.02 Ohm
  • Accuracy (ESR>2 Ohm): ±1.5% ±0,2Ohm
• Abuse voltage: C<10µF ±275V; C>10µF ±50V
• Auto-discharge voltage limit: ±50V
• Batteri:
  • Type: MN21/GP23A 12V Alkaline, medfølger ikke (se tilbehør)
  • Voltage range: 8.5V ~ 12V
  • Voltage warning threshold: 8.5V
• Ledninger: Fastmonteret m. 2mm Banan han
• Auto-slukfunktion: Ja (efter 30 sek.)
• Operationel temperatur: 10°C ~ 40°C
• Størrelse: 103x70x20mm
